SB-2EX

Eastey SB-2EX side belt industrial case taper sealer

Side Belt Case Taper

Eastey’s SB-2EX Case Taper offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

Wide Standard Case Range

The SB-2EX’s side belts are great for light or heavy weight, narrow or small boxes. It is ideal for void-fill cases where the packaged product does not support the box.

Industrial Strength Operation

Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.

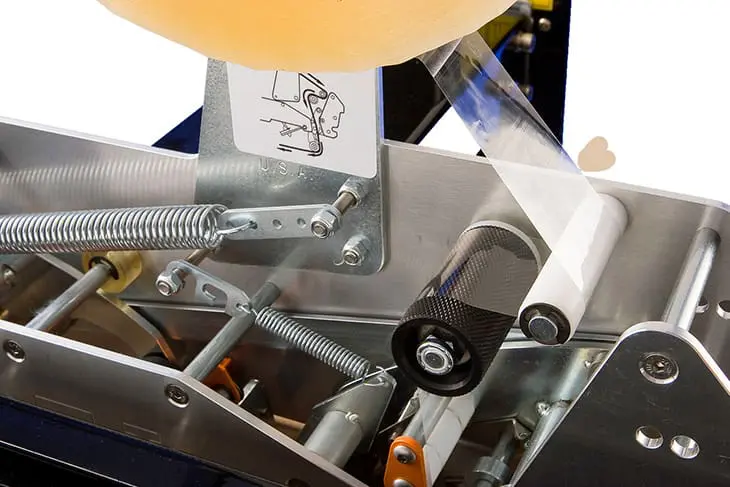

Eastey SB-2EX side belt industrial case taper sealer tapehead

Top and bottom tape heads are interchangeable and are designed for easy threading.

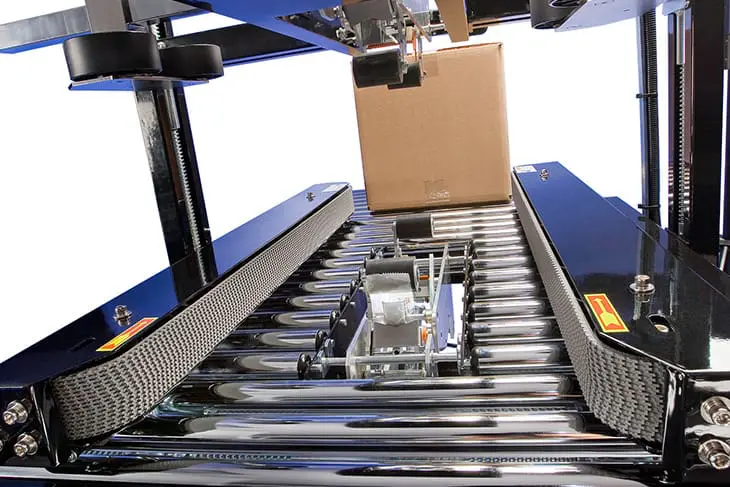

Eastey SB-2EX side belt industrial case taper sealer roller beds

Industrial strength roller beds move boxes consistently through the taper.

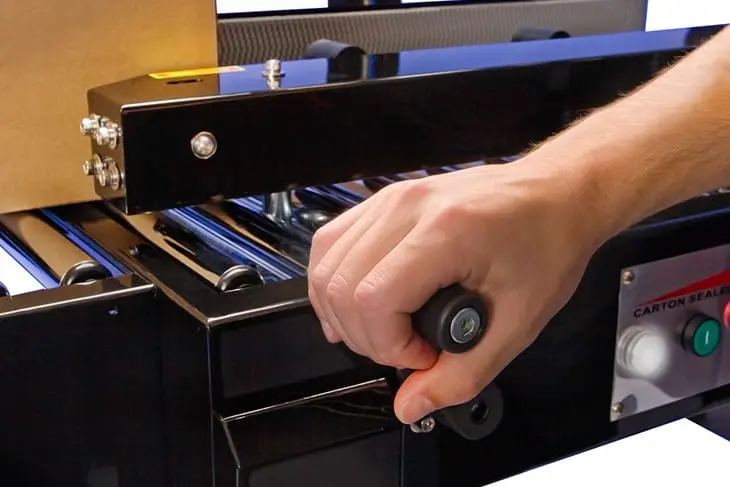

Eastey SB-2EX side belt industrial case taper sealer adjustable side rails

Adjustable side rails and tape head offer fast and easy case changes.

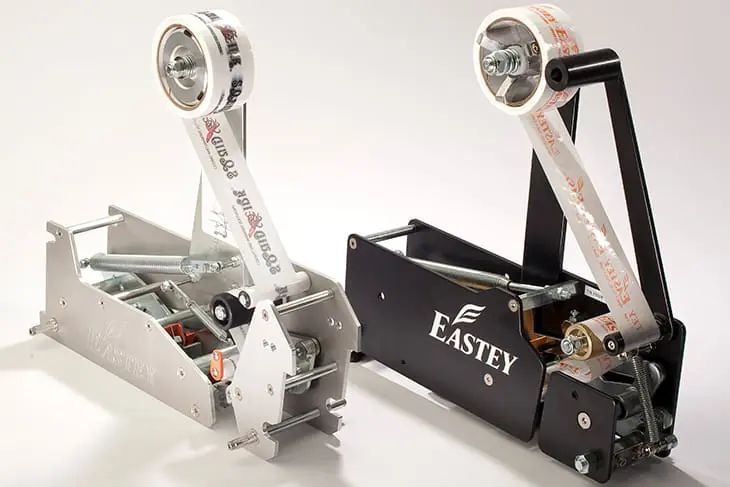

Eastey Easy Packer side top bottom belt industrial case taper interchangeable tapeheads

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.



  • FEATURES
  • SPECIFICATIONS
  • BOX SPECS
  • OPTIONAL ACCESSORIES
  • VIDEOS
FEATURES OF THE BB-2

  • Plug-in and go operation
  • Fast and easy box size changes
  • Industrial strength side belts
  • Interchangeable top and bottom tape cartridges
  • Emergency stop button
  • Adjustable leg extensions
  • Casters for transportation within plant
  • Front and rear pack tables to allow for case packing
  • Top squeezers push top flaps together for accurate case sealing
  • Powder coated 12 gauge steel
  • Low maintenance, no air required

TAPING SPECIFICATIONS

  • Sealer Type – Side belt, top and bottom case sealer
  • Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability
  • Belt Speed – 75 feet/per minute
  • Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
  • Conveyor Height Adjustment – 18.1” to 32.3”
  • Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape
  • Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
  • Drive Motor – Two (2) 1/4 HP drive motors
  • Electrical Requirements – 110 VAC, 60Hz, 4.0A
  • Agency Approvals – CE Certification

BOX SPECIFICATIONS

  • Minimum Box Size – (Length) 5″ (Width) 4″ (Depth) 4″
  • Maximum Box Size – (Length) infinite (Width) 19.5″ (Depth) 19.5″

OPTIONAL ACCESSORIES

  • 3” Tape Head – Accepts 3” wide tape rolls
  • Stainless Finish – Complete stainless finish to meet specific application requirements

THE SB-2EX IN ACTION
