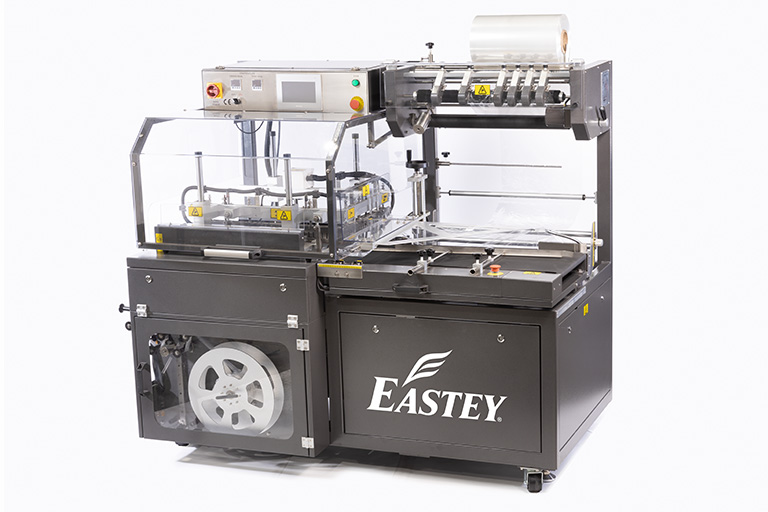

Value Series Automatic L-Sealers VSA1825

Proven reliable over and over again, Eastey’s VSA1825 Auto L-Sealer will handle the day to day operation required for automatic sealing and provide you with all the quality features found in much higher priced machines. They are designed and built to give you the performance needed for positive sealing a wide variety of polyolefin shrink films.

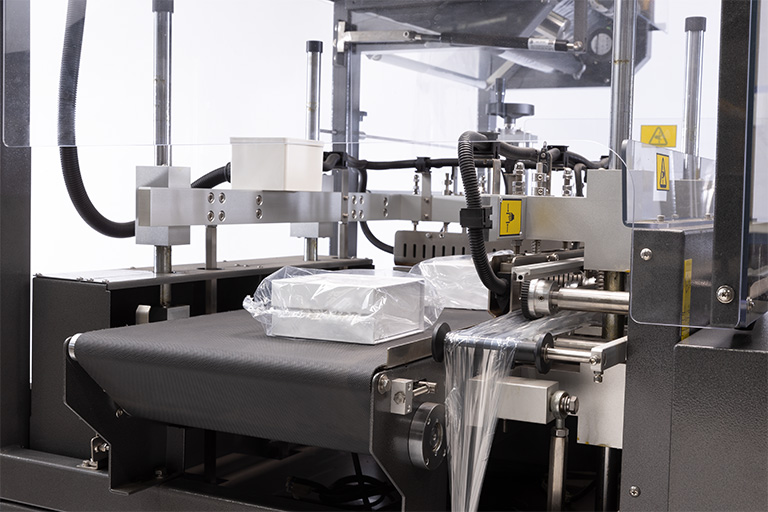

Eastey’s VSA1825 is designed specifically for automatic L-sealing applications that require simple operation and a small footprint. Products are automatically fed into the VSA1825 where a product sensor detects the product as it moves into the sealing area. Once in position, a 90° guillotine hot knife seal bar automatically seals the film edges to create a loose bag around the product.

Once sealed, the product transfers to a heat tunnel to shrink the film and provide a clean, finished product. The efficient automatic seal system allows users to seal between 35 – 40 products per minute, depending on the product size and application requirements.

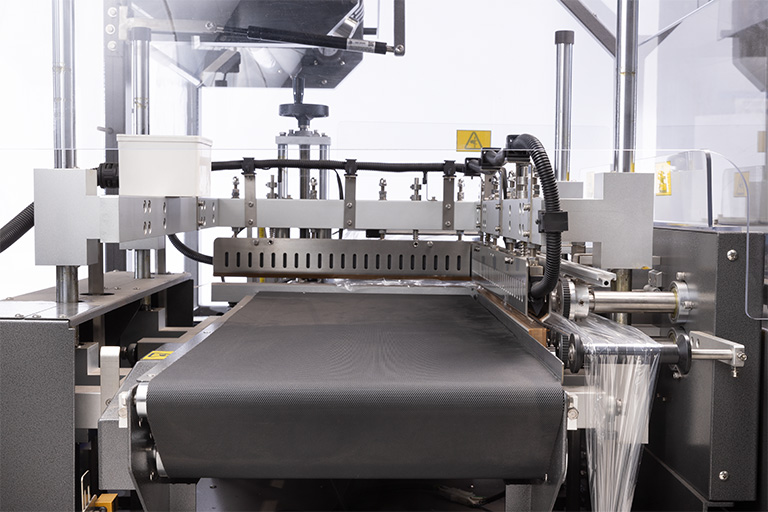

Hot Knife Seal Bar – Vertical cutting motion with PTFE hot knife delivers a consistent seal every time

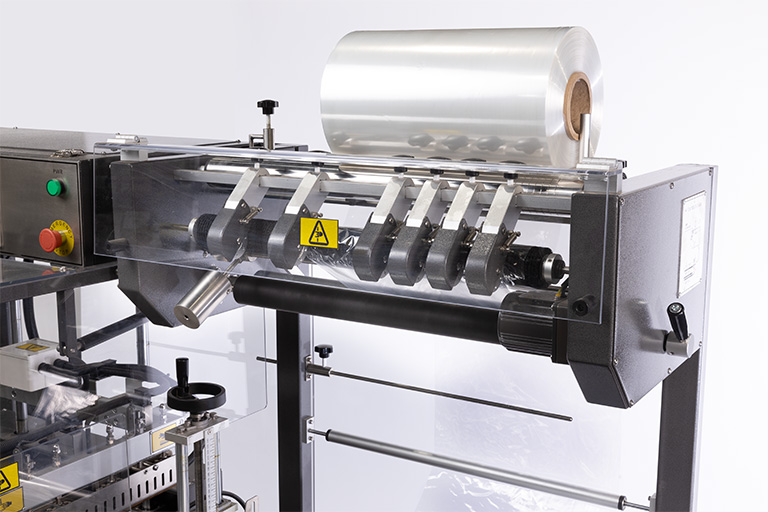

Multiple Pin Perforators – Adjustable pin perforators provide air evacuation during shrink process

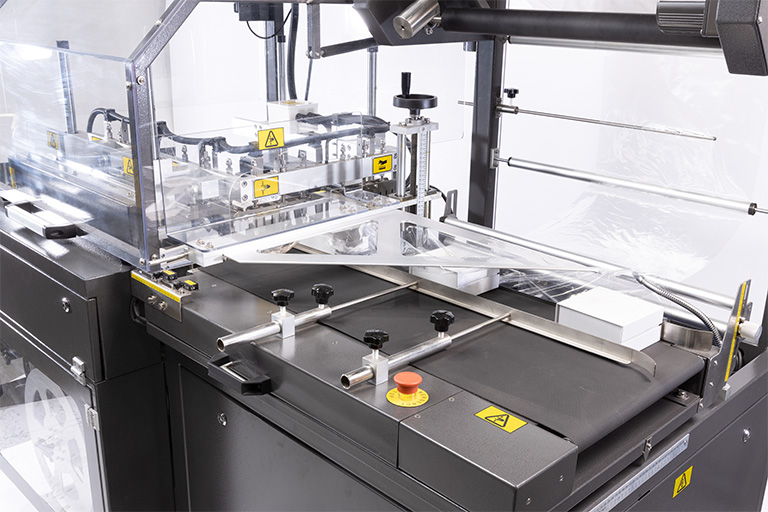

Film Inverter – Opens film to create a loose bag around the product

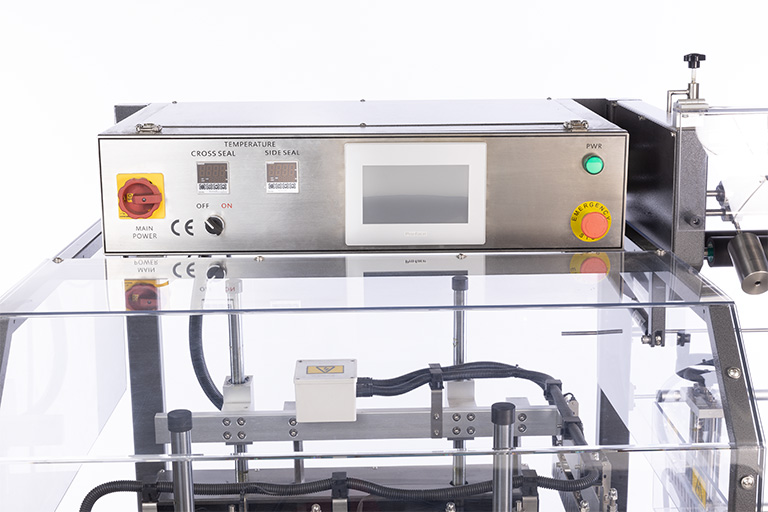

7” Color Touchscreen – User interface features simple menus for easy operation and adjustments required for a variety of applications

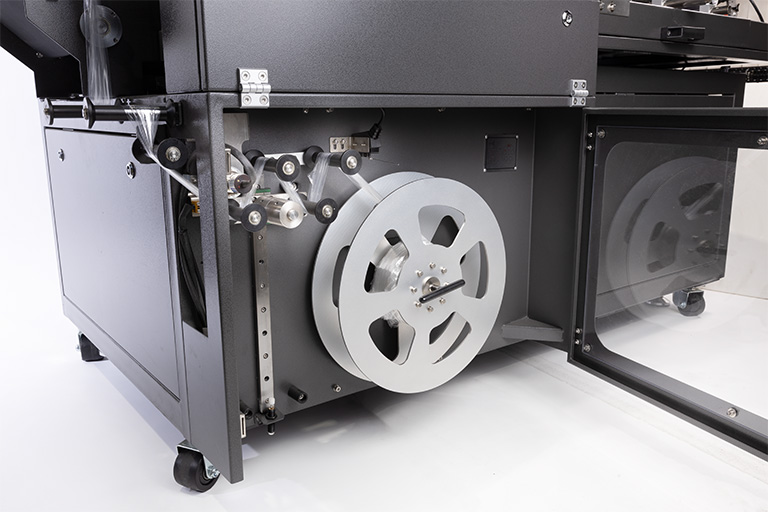

Scrap Wind Roller – Take-up wheel for safe and convenient removal of scrap film

Exit Conveyor – Provides a smooth transition from the sealer to the shrink tunnel

  • Videos
  • Features
  • Designed to seal polyolefin shrink films
    All-welded main frame from 12 gauge steel
    Normal speed infeed and outfeed conveyors
    High speed with product indexing
    Motorized seal height adjustment for various product sizes
    Seal head equipped with pneumatic air cylinder for automatic sealing
    Designed to seal most center-folded polyolefin and polyethylene shrink films
    Adjustable pin perforators provide air evacuation
    Infeed and outfeed conveyors run at 100 f/min (30.5 m/min)
    Motorized seal height adjustment to center seal line for variousproduct sizes
    Seal head equipped with pneumatic air cylinder for automaticsealing
    PTFE hot knife seal bar with vertical cutting motion for consistent and clean sea
    Consistent pressure across seal bar
    Automatic cycle timing with adjustable dwell time
    7” color touchscreen controller for user interface and system setup
    Film tracking wheels keep film in place; scrap film take-up wheel included
    Heavy duty casters and leveling pads for transportation within plant
    Easy to use design requires minimal training and maintenance
    18”W x 25”L seal area for packages up to 7” tall
    Maximum film width up to 24”
    Maximum film roll OD up to 12”
    60 – 80 PSI, ¼” NPT fitting
    CE Certification

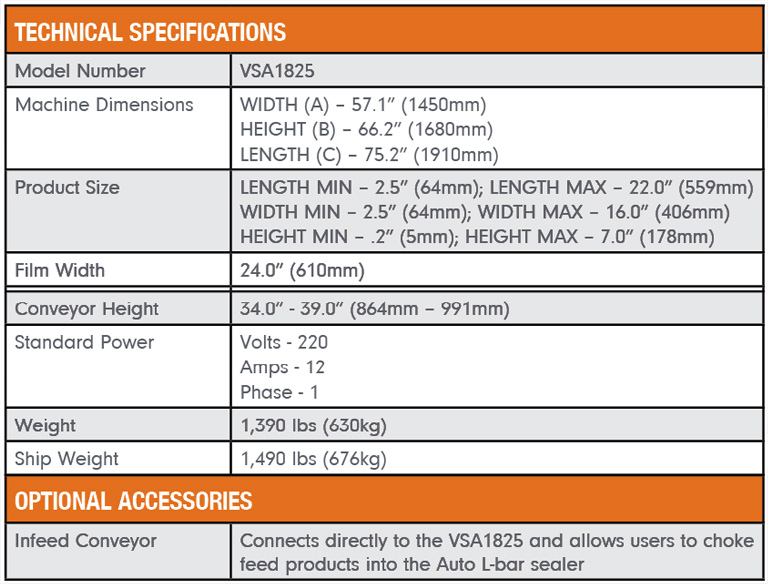

  • Model Specs
