SB-2EX Side Belt Case Taper
Eastey’s SB-2EX Case Taper offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
- Sealer Type – Side belt, top and bottom case sealer
- Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability
- Belt Speed – 75 feet/per minute
- Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
- Height Adjustment – Standard adjustable legs for 18.1” to 32.3” conveyor heights
- Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape
- Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
- Drive Motor – Two (2) 1/4 HP drive motors
- Electrical Requirements – 110 VAC, 60Hz, 4.0A
- Agency Approvals – CE Certification

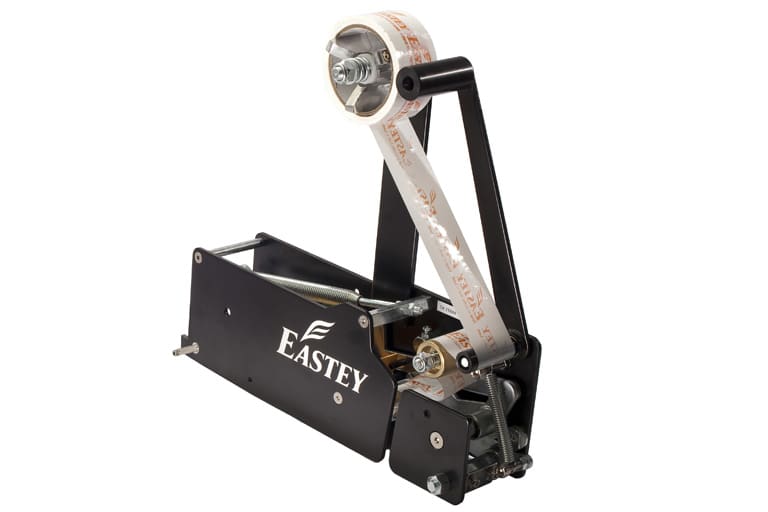

Eastey EX 2in. & 3in. Tape Cartridge (BLACK)
2” EX Tape Cartridge, Black – PN: 5001619
3” EX Tape Cartridge, Black – PN: 5001618
The Eastey-EX tape cartridge is designed as a single cartridge to hold, tension, apply and cut tape to cases as they pass through the Eastey Industrial Case Sealing System.

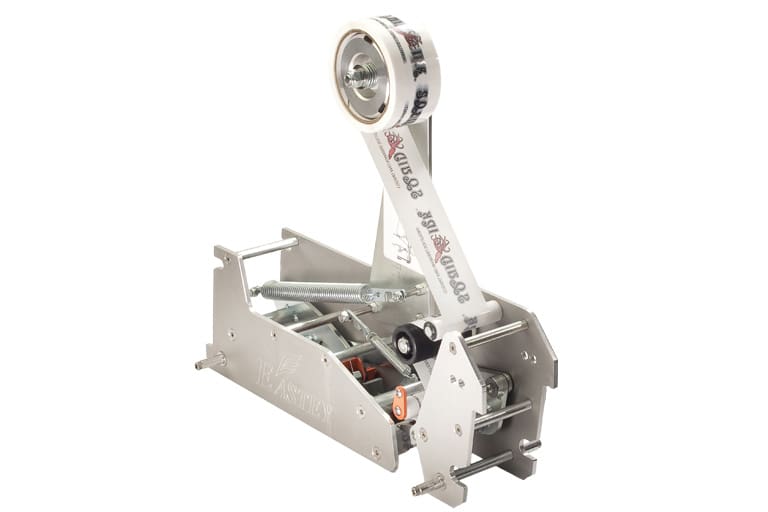

Eastey EZ-EX 2in. & 3in. Tape Cartridge (SILVER)
2” EZ-EX Tape Cartridge, Silver – PN: 5001615
3” EZ-EX Tape Cartridge, Silver – PN: 5001616
The EZ-EX tape cartridge is designed as a single cartridge to hold, tension, apply and cut tape to cases as they pass through the Eastey Industrial Case Sealing System
Eastey EZ-EX 1-1/2in. Tape Cartridge (SILVER)
1 1/2” EZ-EX Tape Cartridge, Silver – PN: 5000794
The EZ-EX tape cartridge is designed as a single cartridge to hold, tension, apply and cut tape to cases as they pass through the Eastey Industrial Case Sealing System.
Eastey EX 2in. & 3in. L-Clip Tape Cartridge (BLACK)
2” EX L- Clip Tape Cartridge, Black – PN: 5000963
3” EX L-Clip Tape Cartridge, Black – PN: 5000973
The Eastey-EX L-Clip tape cartridge is designed as a single cartridge to hold, tension, apply, and cut tape to cases as they pass through a case taping machine. The L-Clip tape cartridge is so named because it applies an L-shaped tape seal to seal the case just at the center of the edge or edges of the case where it is applied. Eastey EX L-Clip tape cartridges are available for dispensing and applying 2” or 3” widths of tape.
