Eastey Uniform Case Taper SB-2EX-SS Stainless Steel Side Belt

SB-2EX-SS Stainless Steel Side Belt Case Taper

Eastey’s SB-2EX-SS Case Taper offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

The SB-2EX-SS’s side belts are great for light or heavy weight, narrow or small boxes. It is ideal for void-fill cases where the packaged product does not support the box.

Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX-SS a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge stainless steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX-SS is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.

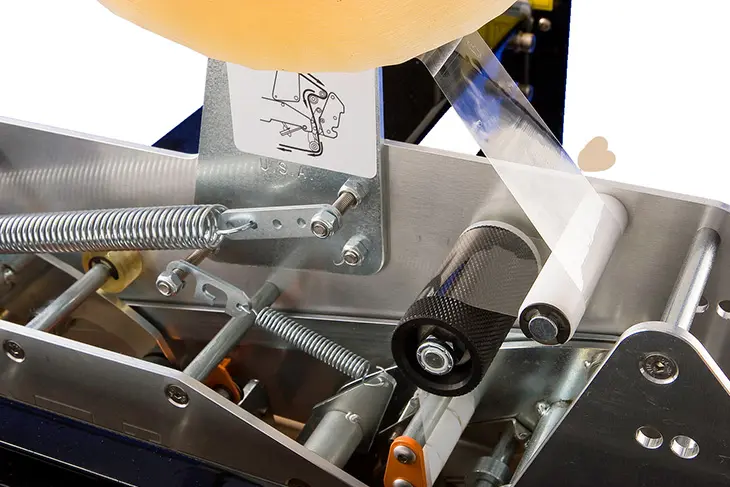

Eastey Uniform Case Taper SB-2EX-SS Stainless Steel Side Belt East Threading Tapehead

Top and bottom tape heads are interchangeable and are designed for easy threading.

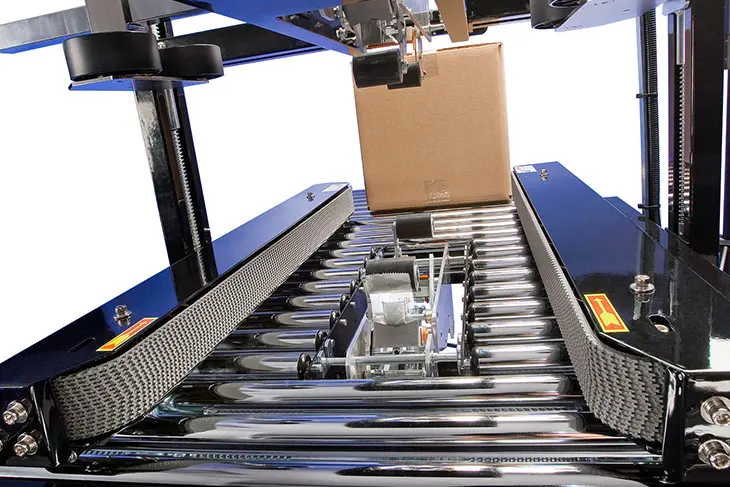

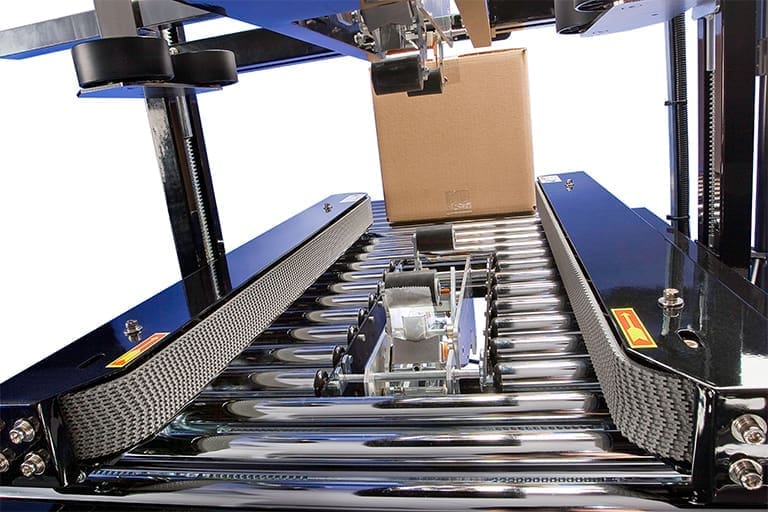

Eastey Uniform Case Taper SB-2EX-SS Stainless Steel Side Belt Industrial Strength Rolers

Industrial strength roller beds move boxes consistently through the taper.

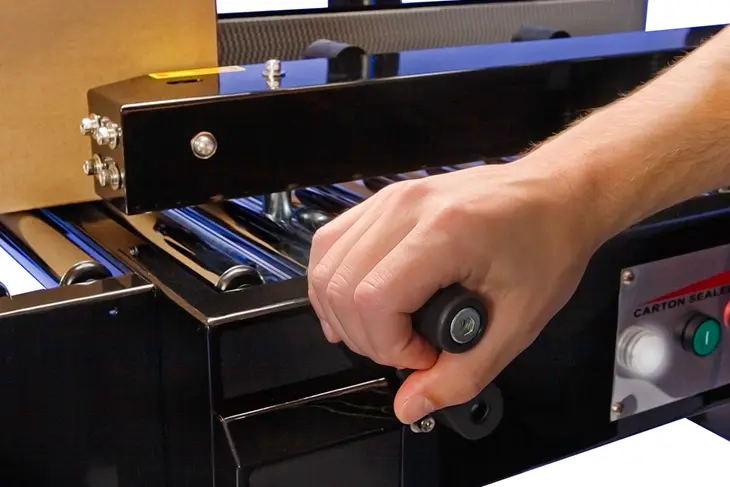

Eastey Uniform Case Taper SB-2EX-SS Stainless Steel Side Belt Adjustable Side Rails

Adjustable side rails and tape head offer fast and easy case changes.

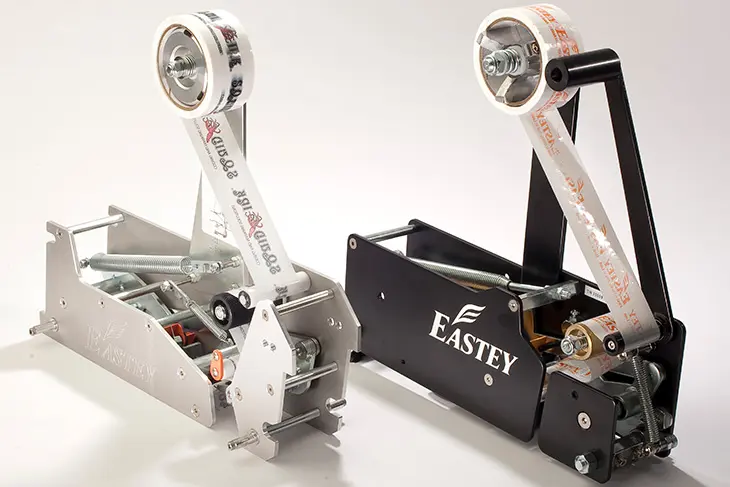

Eastey Uniform Case Taper SB-2EX-SS Stainless Steel Side Belt Identical Top and Bottom Tapeheads

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.

  • Videos
  • Features
  • Plug-in and go operation
    Fast and easy box size changes
    Industrial strength side belts
    Interchangeable top and bottom tape cartridges
    Emergency stop button
    Adjustable leg extensions
    Casters for transportation within plant
    Front and rear pack tables to allow for case packing
    Top squeezers push top flaps together for accurate case sealing
    12 gauge stainless steel
    Low maintenance, no air required
  • Taper Specs
  • Sealer Type – Side belt, top and bottom case sealer
    Machinery Makeup – Industrial strength 12 gauge steel
    Belt Speed – 75 feet/per minute
    Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
    Height Adjustment – Standard adjustable legs for 18.1” to 32.3” conveyor heights
    Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape
    Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
    Drive Motor – Two (2) 1/4 HP drive motors
    Electrical Requirements – 110 VAC, 60Hz, 4.0A
    Agency Approvals – CE Certification
  • Box Specs
  • Minimum Box Size – 5″ (Length) 4.5″ (Width) 4.5″ (Depth)
    Maximum Box Size – infinite (Length) 19.5″ (Width) 19.5″ (Depth)
  • Optional Accessories
  • 3” Tape Head – Accepts 3” wide tape rolls
