Eastey L-Sealers Professional Series Shrink Packaging

Professional Series L-Sealers

EASTEY’s Professional Series L-Sealers provide top of the line features and the most robust L-Sealer design on the market today. Expertly welded from ¼” cold rolled steel, EASTEY Professional L-Sealers will withstand even the most abusive real world sealing applications. As a measure of strength, EASTEY L-Sealers weigh nearly twice as much as competitive models.

Eastey L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, stainless steel film clamps, and heavy- duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.

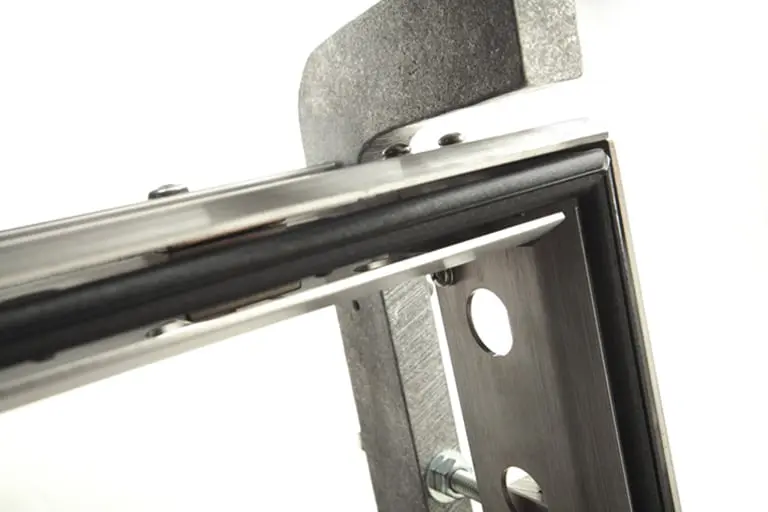

Eastey L-Sealers Professional Series Shrink Packaging Hot Knife

Utilizes low maintenance hot knife seal head.

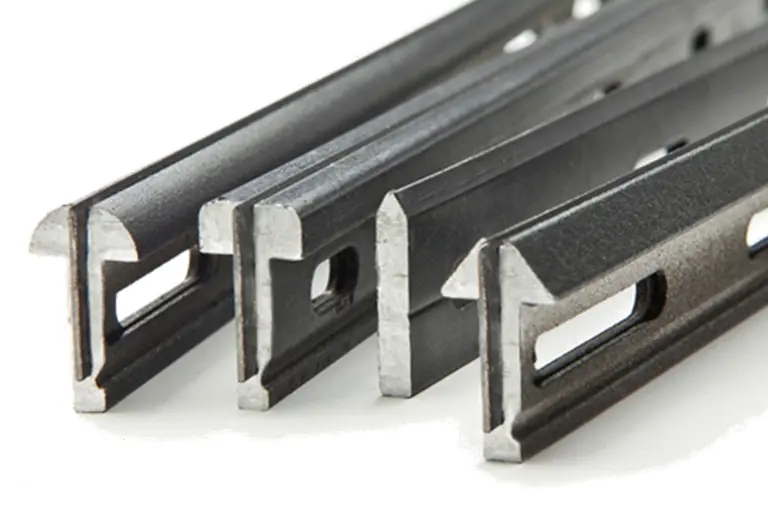

A variety of seal inserts are available for different films and seal widths: mushroom (standard), pancake, poly, or arrow.

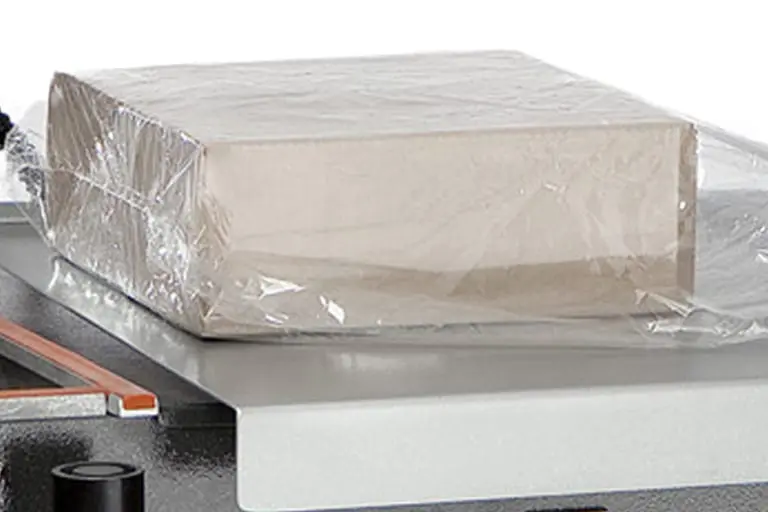

Eastey L-Sealers Professional Series Shrink Packaging Product Tray

Adjustable product tray easily separates film and accommodates variety of product sizes.

Eastey L-Sealers Professional Series Shrink Packaging Pin Perf

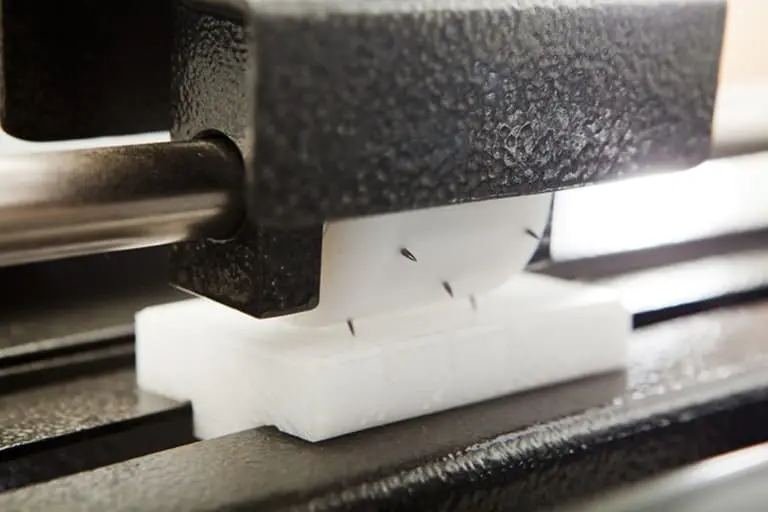

Adjustable pin perforator provides air evacuation in film.

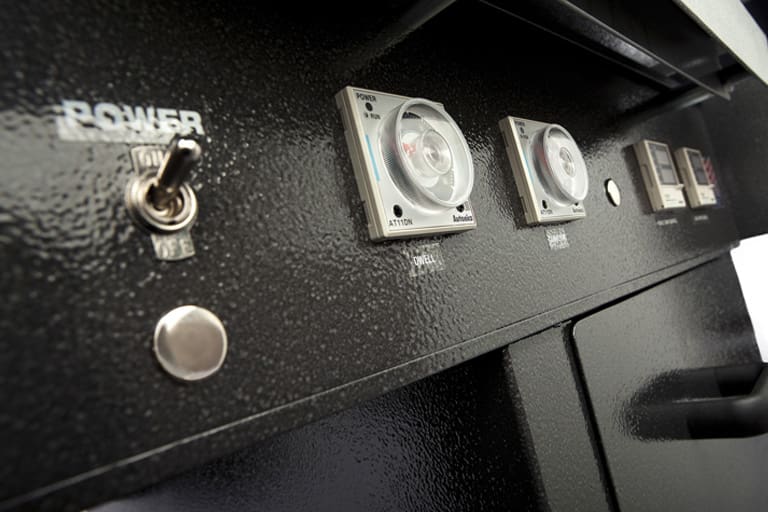

Eastey L-Sealers Professional Series Shrink Packaging Control Panel

Simple, easy to use control panel with automatic cycle timing and adjustable dwell time.

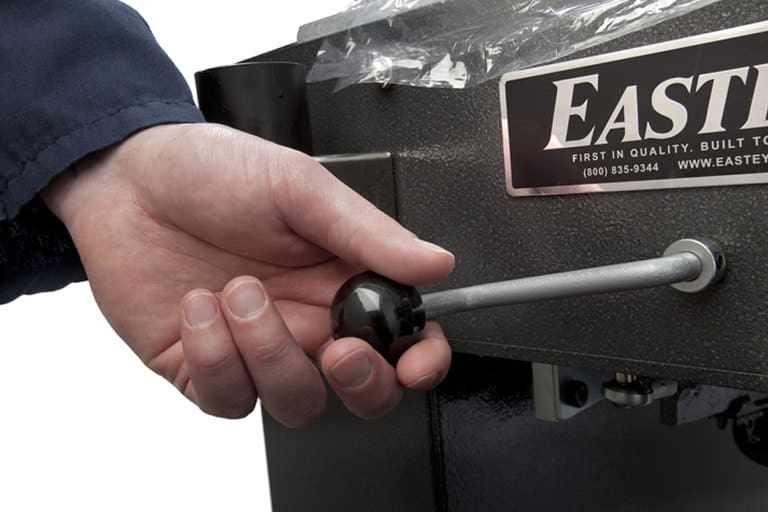

Eastey L-Sealers Professional Series Shrink Packaging Adjustable Takeaway Conveyor

Takeaway conveyor can be raised or lowered to center the seal on your product .

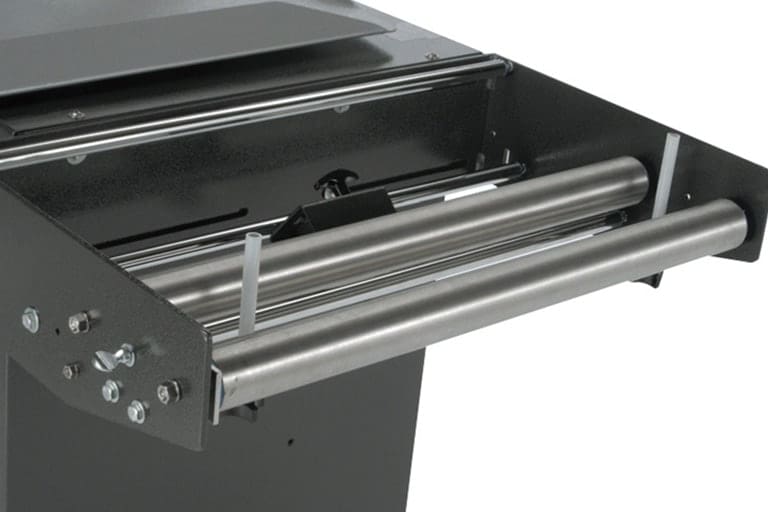

Eastey L-Sealers Professional Series Shrink Packaging Film Cradle

Heavy duty film cradle allows for quick and easy adjustment and changeover.

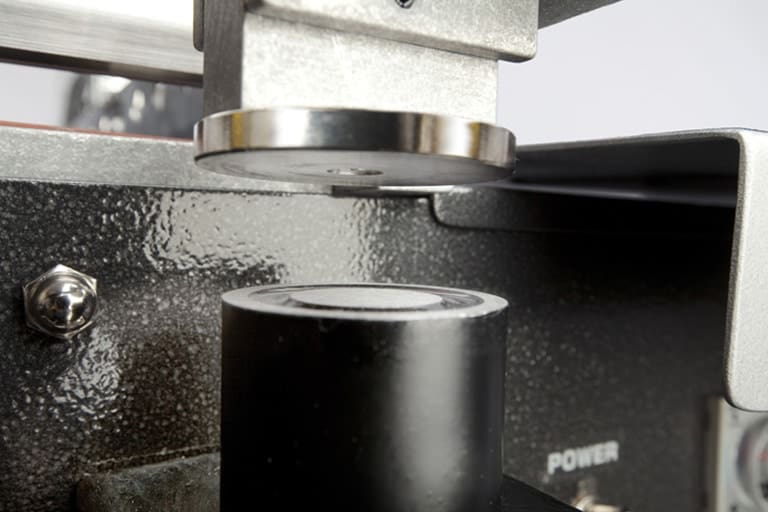

Eastey L-Sealers Professional Series Shrink Packaging Locking Magnet Clamp

Heavy-duty locking magnet clamps apply consistent pressure across seal bar.

  • Videos
  • Features
  • Designed to seal most polyolefin, polyethylene, and PVC* shrink films
    All-welded main frame from ¼” cold rolled steel
    Built-in drawer for tools or spare parts
    Seal head casting equipped with head return cylinder
    Stainless steel film clamps hold film in place while sealing
    Utilizes durable and low maintenance hot knife seal system
    Hot knife seal systems available with mushroom (standard), pancake, or arrow inserts
    Dual locking magnet clamps apply even pressure across sealbar
    Adjustable dwell time for better seal control
    Solid state temperature control adjustable for a variety of films*
    Adjustable product tray accommodates wide variety of product sizes
    Takeaway conveyor can be raised or lowered to center-seal product
    Automatic takeaway conveyor
    Heavy duty film cradle allows for easy changeovers and adjustments
    Adjustable pin perforator provides air evacuatio
    Side seal size from 20” – 50”; front seal size from 16” – 100”
    Maximum film width up to 44”
    Maximum film roll OD up to 12”; 10” with power unwind
    Custom two-part epoxy finish resists scratching
    Heavy duty casters for transportation within plant
    Available in 110v, 220v, or optional 480v
    Easy to use design requires minimal training and maintenance
    Made in the USA

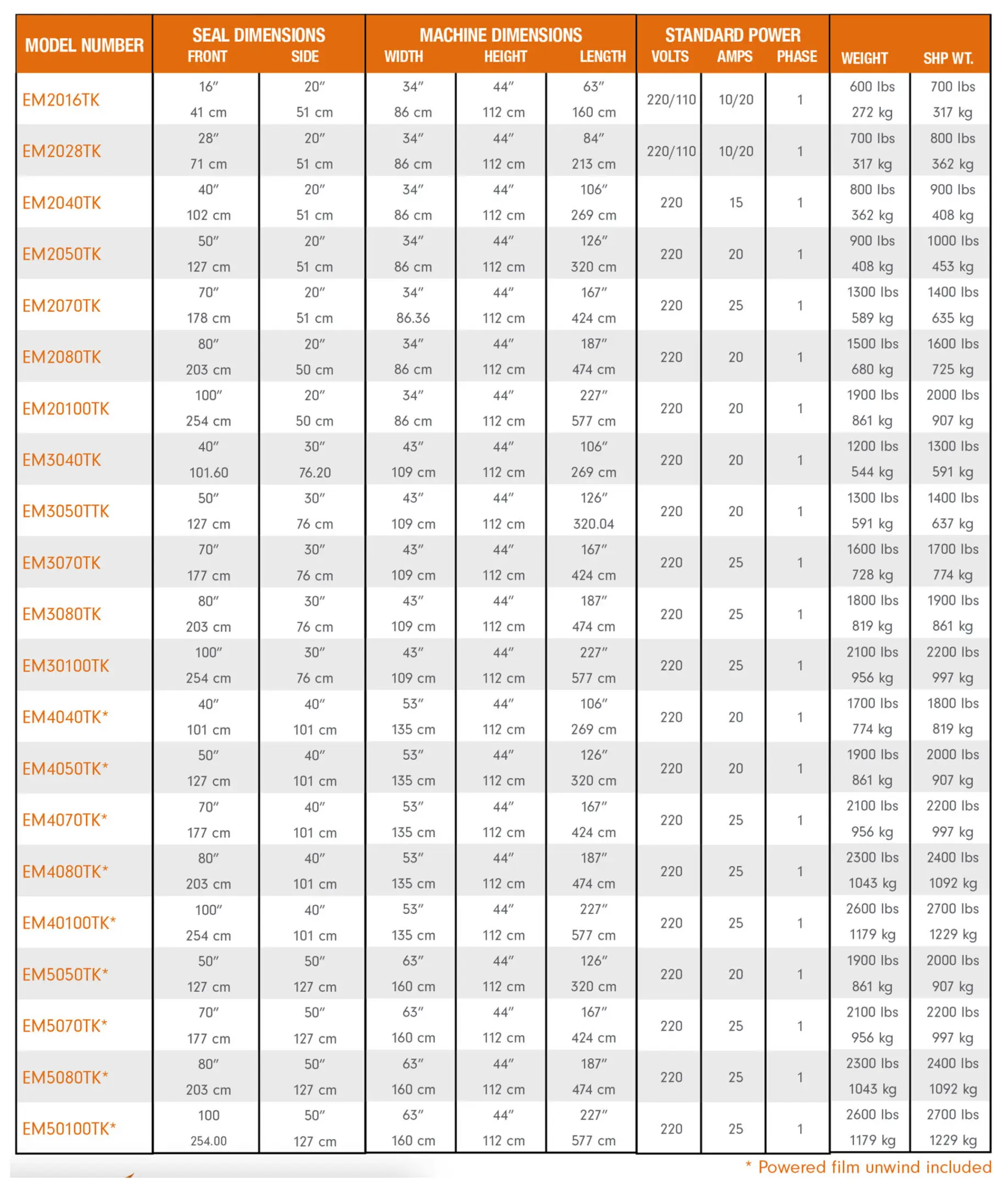

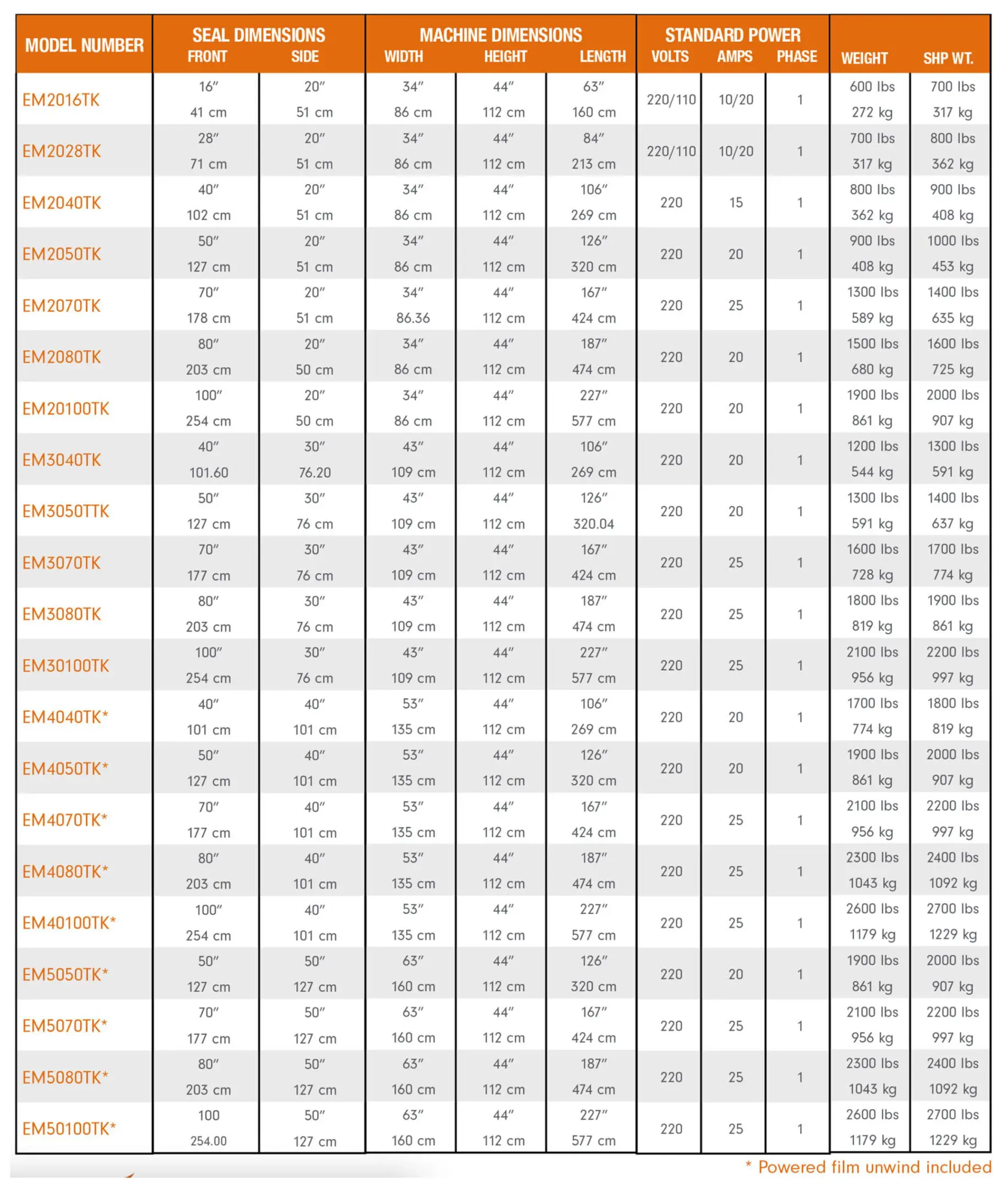

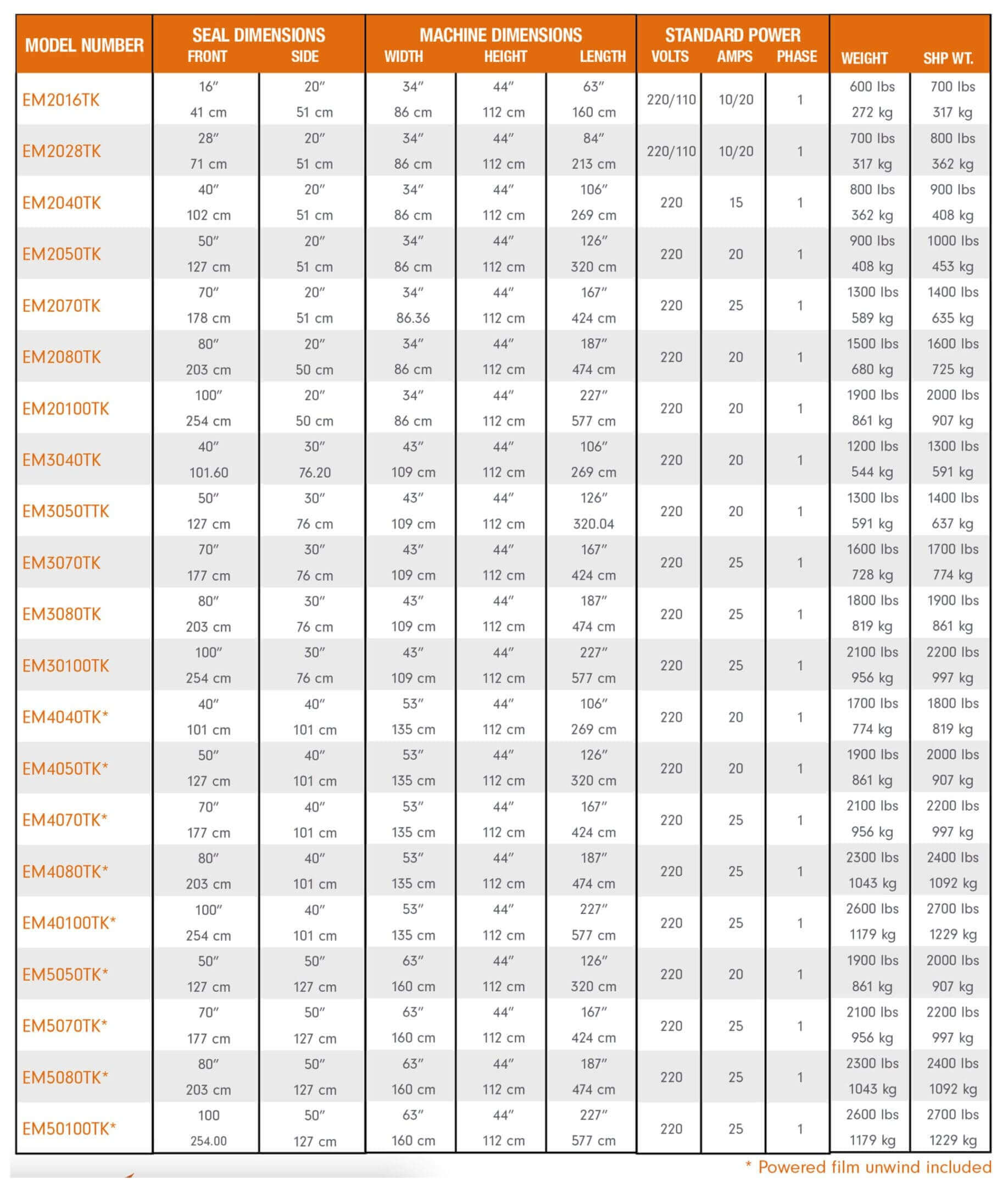

  • Model Specs
  • Optional Accessories
  • Power Film Unwind – Allows free feeding of film increasing operator efficiency
    Film Inverter – Inverting head allows the film to come off the back of machine. This pre-opens the film and minimizes operator effort which in turn increases output
    Hot Knife Inserts – Hot knife inserts available in Mushroom, Pancake, or Arrow styles
    Specialty Models – Stainless steel and left hand models available
    DuoSeal – Continuously Heated Seal Bar
    Additional Pin Perforator Wheel
    Additional 2” Seal Bar Length Extension – front or side
    Variable Speed Takeaway Conveyors
    Lowered Conveyor – additional 2″ to allow for 4″ additional product height
    Conveyor Assist – for transferring heavy products
    Product Tray – Custom size, stainless finish, UHMW, or gravity roller
    Product Assist with photoeye
    UL approved electronics and control box
    Left hand machines available
    Custom sizes and configurations available upon request
