SB-2EXN

Side Belt Case Taper

  • Available without anvil
  • Efficiently folds 3 flaps
  • For integration with Eastey Case Former

OPERATOR FRIENDLY

The side belt driven SB-2EXN is designed for compact, packing and sealing.The durable design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum. The SB-2EXN provides a fast and cost-efficient alternative to hand taping.

PACKING AND SEALING MADE EASY

Designed to streamline manual case packing, the SB-2EXN includes extended side rails and flap closing bars to assist with the packing and sealing process. The system pairs perfectly with Eastey’s EX-CF Case Former to make a one person case forming, packing, and sealing station. The EX-CF Case Former automatically folds the bottom major and minor flaps and holds the box in place for the operator to fill. Once filled, the operator pushes down and holds the top trailing minor flap while the box enters the machine to be sealed.

LESS DOWNTIME

SB-2EXN offers fast and easy case changes with adjustable side rails and flexibility for boxes 5” in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. SB-2EXN utilizes Eastey’s SB-2EXN Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4.0” wide and as low as 4.0” tall.

INDUSTRIAL QUALITY

CE approved dual drive motors, aggressive industrial strength side belts and roller tables make SB-2EXN a workhorse. Each machine is made from 12 gauge steel and will withstand the most rugged applications. The powder coated exterior protects the machine from abusive conditions and guarantees years of use.

CONVENIENCE

These machines accept 2” wide pressure-sensitive tape as a standard, or can be ordered with 3” tape heads. The use of Eastey’s SB-2EXN case taping machine can be learned in minutes, avoiding breaks in production and downtime, saving your company money and increasing your ROI.

ea-12924-sb-2exn-detail_1

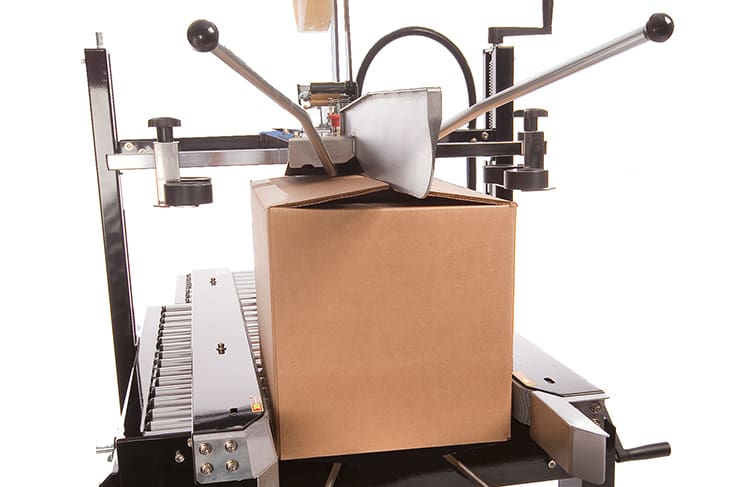

Flap closing bars plow and assist in flap closing prior to being sealed

ea-12924-sb-2exn-detail_2

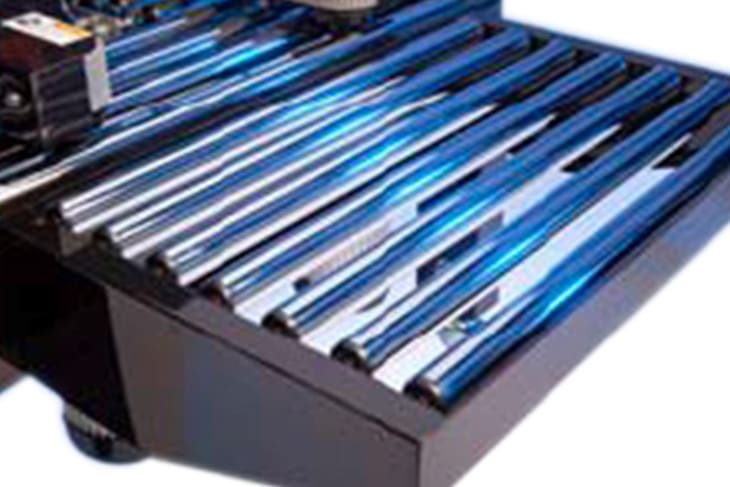

Industrial strength roller beds move boxes consistently through the taper

ea-12924-sb-2exn-detail_3

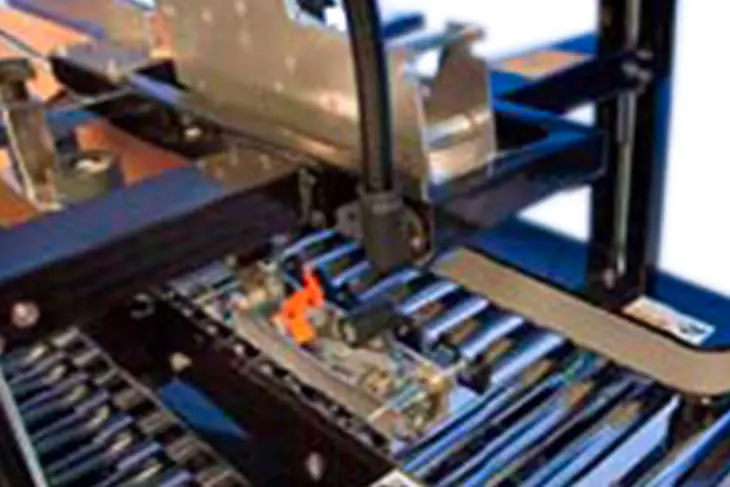

Adjustable side rails and tape head offer fast and easy case changes.

ea-120624-sb2ex-auto-detail_4

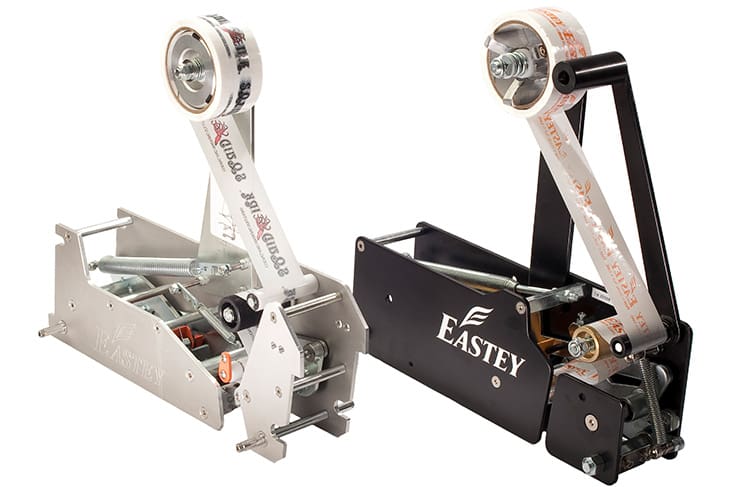

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.

Videos

Case Taper Samples

Features
  • Pairs perfectly with Eastey’s EX-CF Case Former
  • Utilizes Eastey’s Easy-Taper tapehead
  • Plug-in and go operation
  • Powder coated 12 gauge steel
  • Top and bottom tape cartridges
  • Industrial strength side belts
  • Adjustable leg extensions
  • Fast and easy box size changes
  • Low maintenance
  • Accommodates wide case range
  • Casters for transportation within plant
