Professional Series
Semi-Automatic L-Sealers
- All-welded main frame from ¼” cold rolled steel
- Solid state temperature control adjustable for a variety of films
- Automatic takeaway conveyor with solid PVC belting
- Drawer in base for convenient storage of supplies
- Standard sizes from 20”x16” up to 50”x100”
- Custom sizes and configurations available upon request
- Made in the USA
DURABILITY THAT CAN'T BE MATCHED
EASTEY’s Professional Series L-Sealers provide top of the line features and the most robust L-Sealer design on the market today. Expertly welded from ¼” cold rolled steel, EASTEY Professional L-Sealers will withstand even the most abusive real world sealing applications. As a measure of strength, EASTEY L-Sealers weigh nearly twice as much as competitive models.
PROVEN RELIABILITY FOR YOUR NEEDS
Eastey L-Sealers are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC. Cast seal arms, stainless steel film clamps, and heavy- duty magnet clamping are just some of the features that provide the durability you have come to rely on from EASTEY. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.

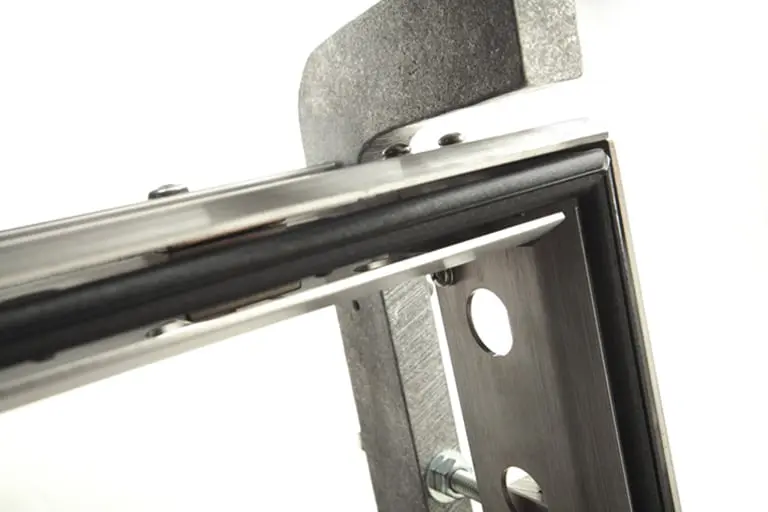

Utilizes low maintenance hot knife seal head.

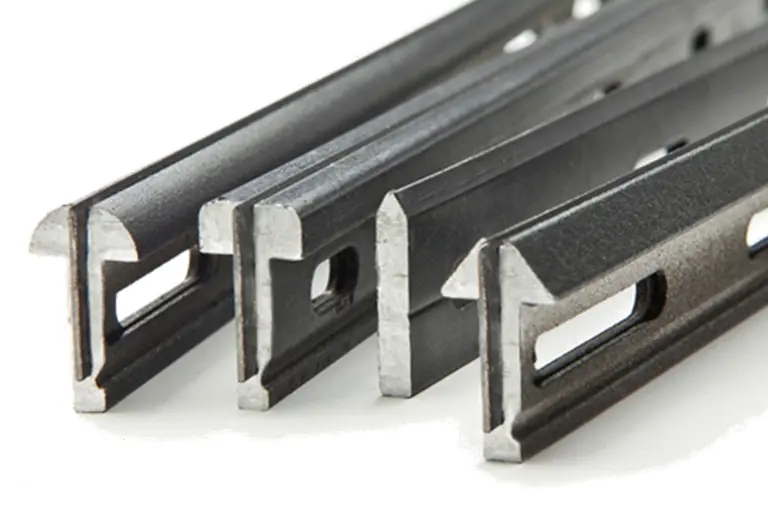

A variety of seal inserts are available for different films and seal widths: mushroom (standard), pancake, poly, or arrow.

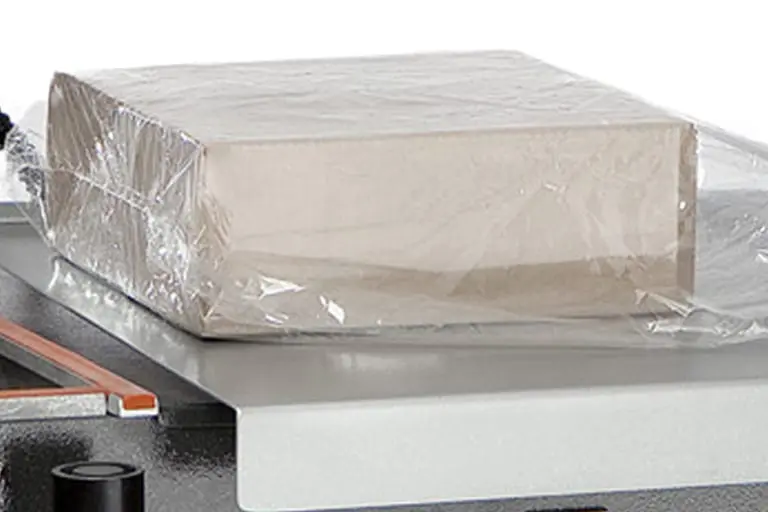

Adjustable product tray easily separates film and accommodates variety of product sizes.

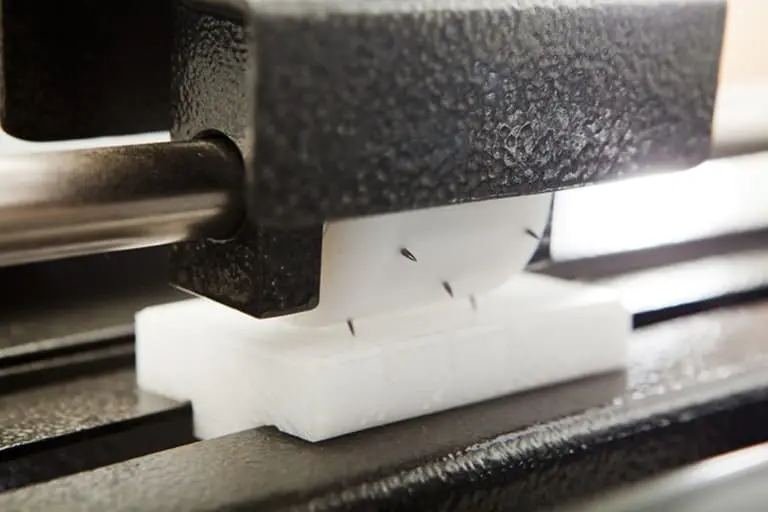

Adjustable pin perforator provides air evacuation in film.

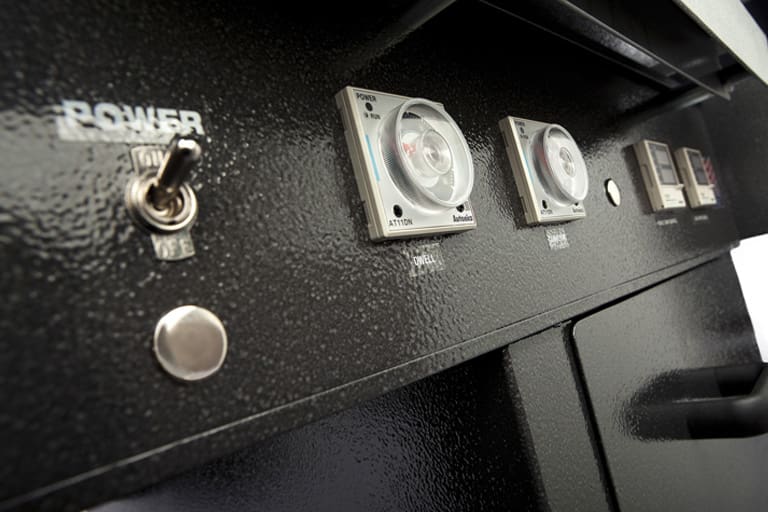

Simple, easy to use control panel with automatic cycle timing and adjustable dwell time.

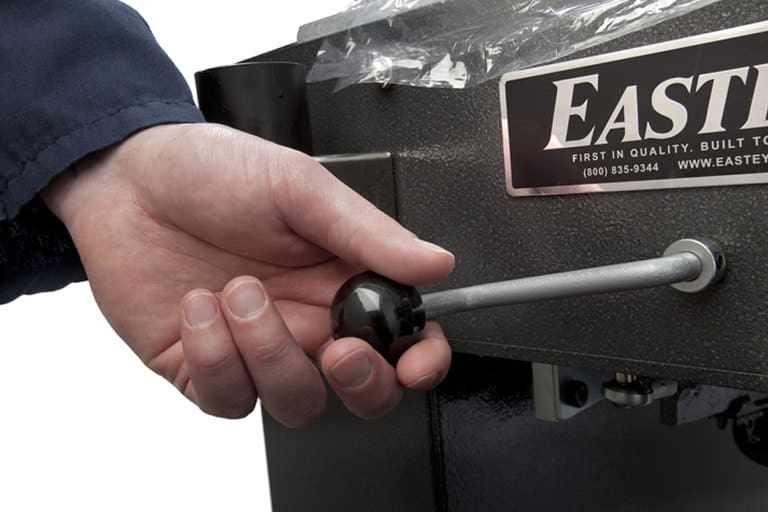

Takeaway conveyor can be raised or lowered to center the seal on your product.

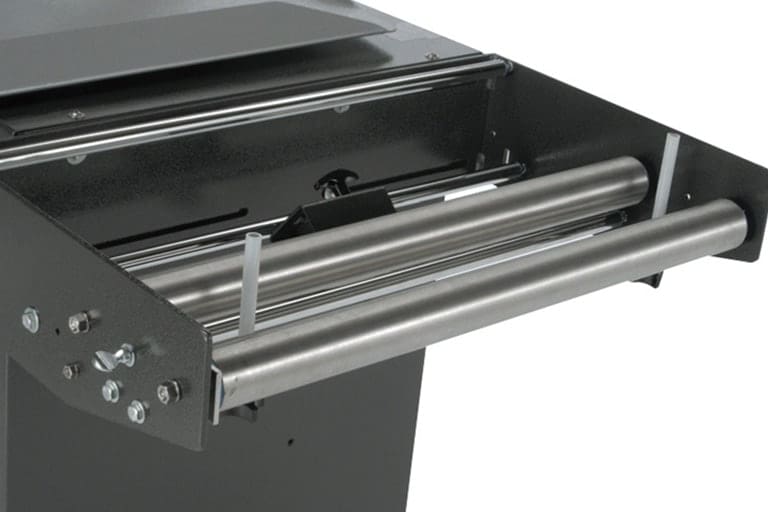

Heavy duty film cradle allows for quick and easy adjustment and changeover.

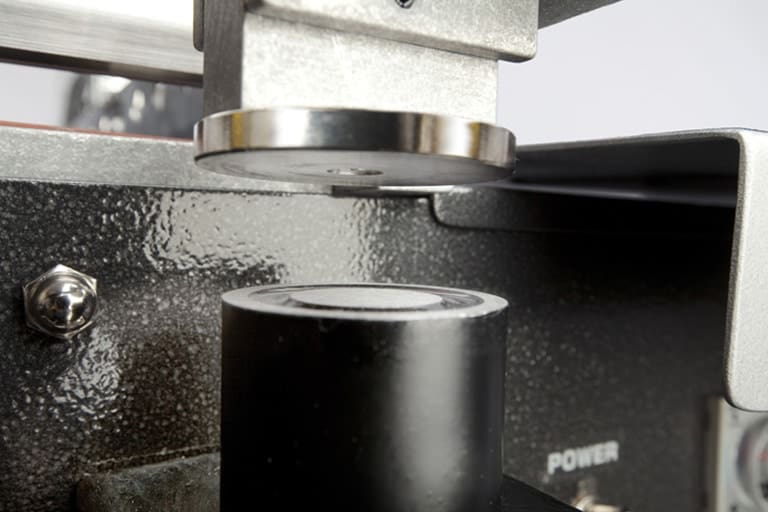

Heavy-duty locking magnet clamps apply consistent pressure across seal bar.
Videos
Shrink Samples
- Designed to seal most polyolefin, polyethylene, and PVC* shrink films
- All-welded main frame from ¼” cold rolled steel
- Built-in drawer for tools or spare parts
- Seal head casting equipped with head return cylinder
- Stainless steel film clamps hold film in place while sealing
- Utilizes durable and low maintenance hot knife seal system
- Hot knife seal systems available with mushroom (standard), pancake, or arrow inserts
- Dual locking magnet clamps apply even pressure across sealbar
- Adjustable dwell time for better seal control
- Solid state temperature control adjustable for a variety of films*
- Adjustable product tray accommodates wide variety of product sizes
- Takeaway conveyor can be raised or lowered to center-seal product
- Automatic takeaway conveyor
- Heavy duty film cradle allows for easy changeovers and adjustments
- Adjustable pin perforator provides air evacuatio

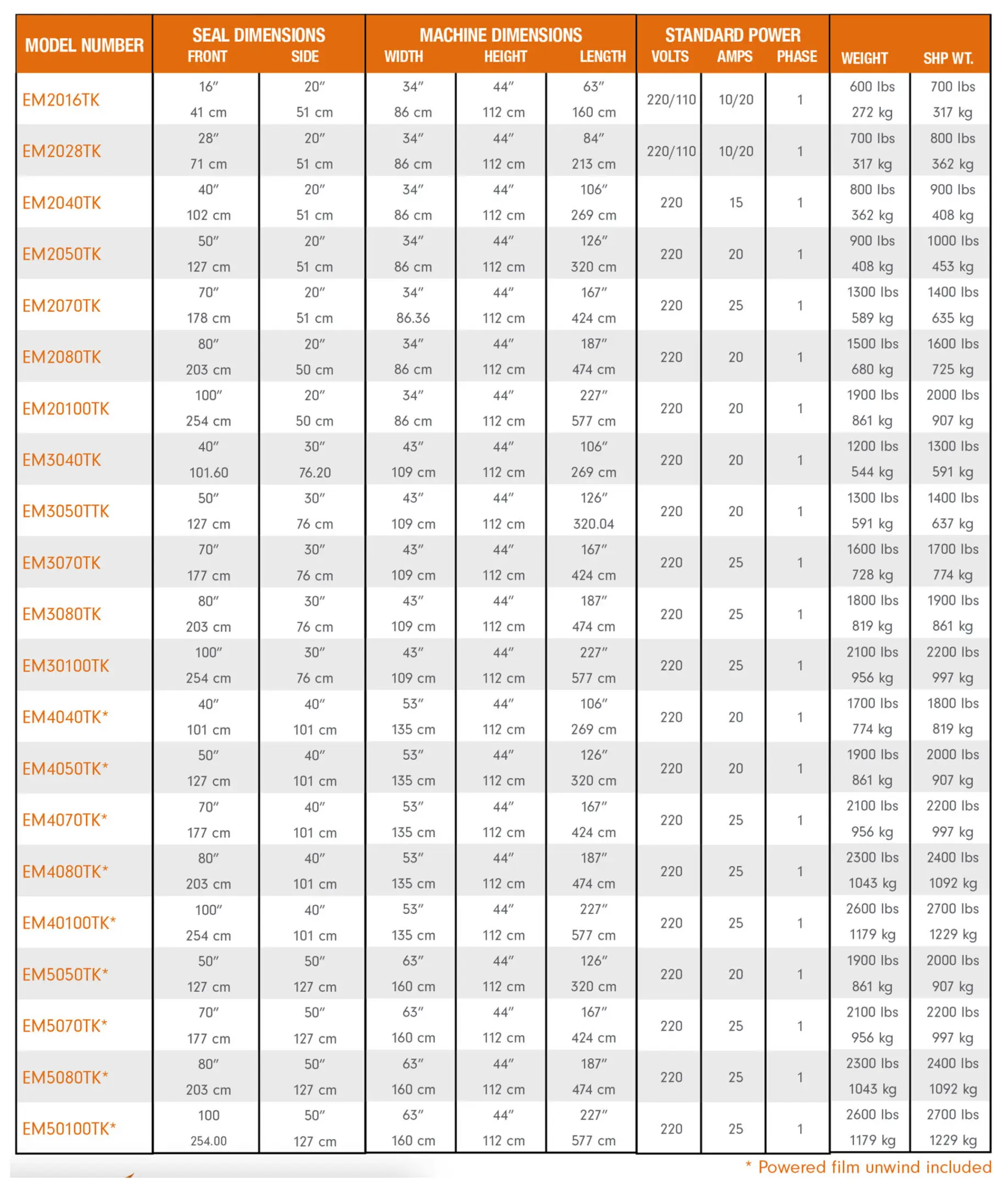

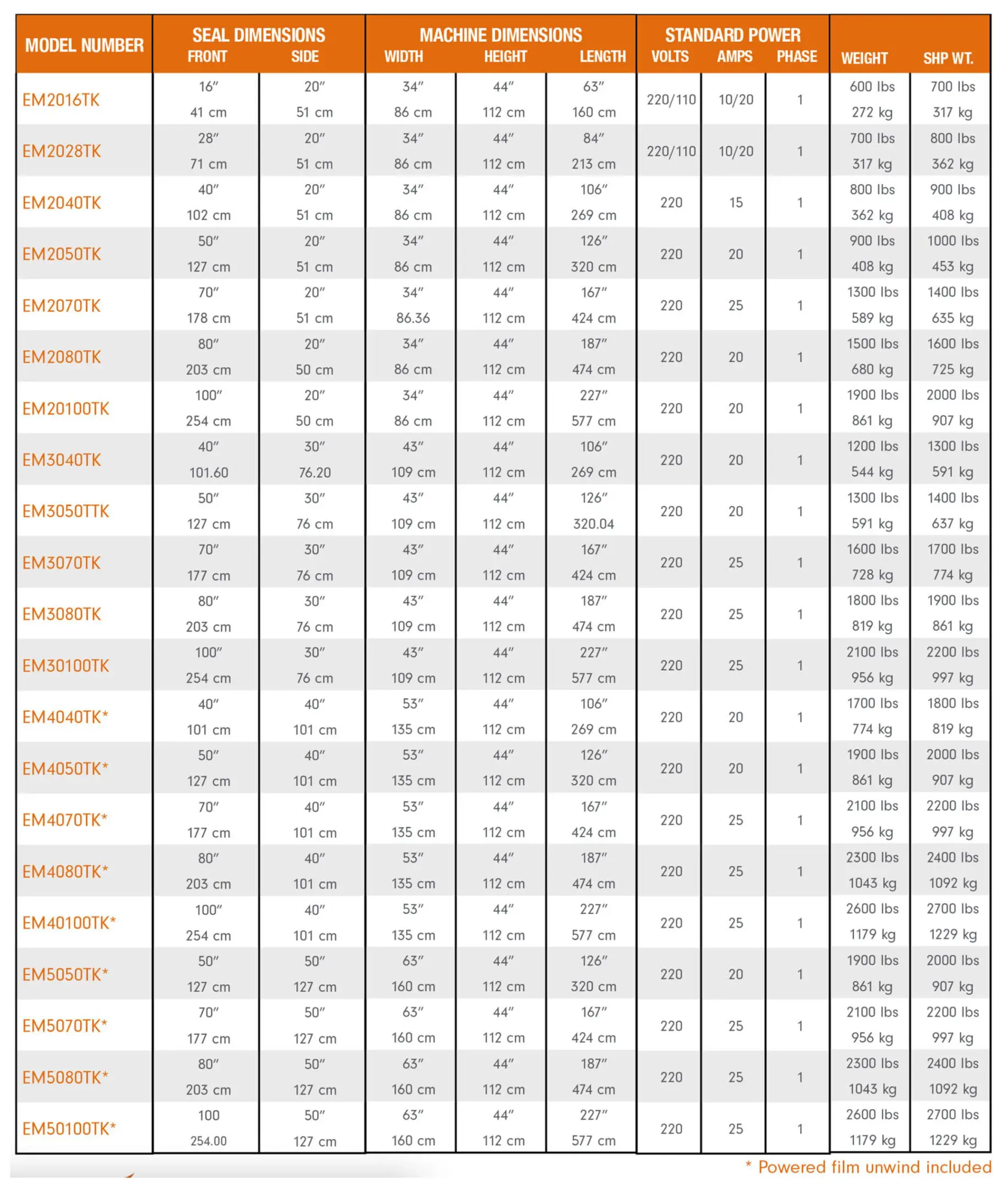

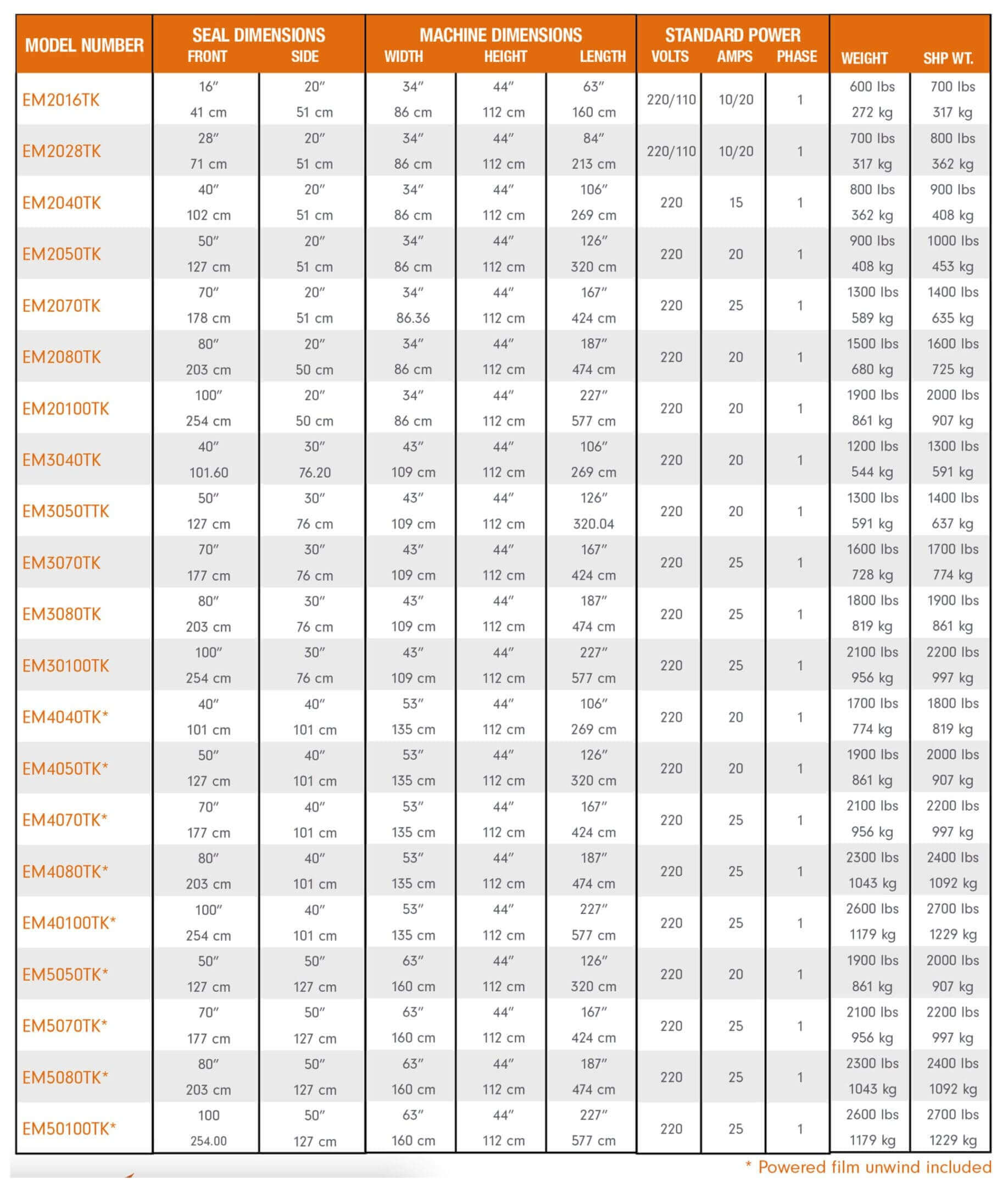

- Side seal size from 20” – 50”; front seal size from 16” – 100”
- Maximum film width up to 44”
- Maximum film roll OD up to 12”; 10” with power unwind
- Custom two-part epoxy finish resists scratching
- Heavy duty casters for transportation within plant
- Available in 110v, 220v, or optional 480v
- Easy to use design requires minimal training and maintenance
- Made in the USA
