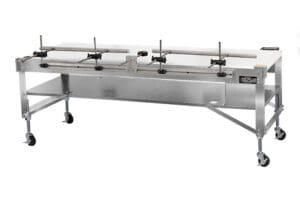

Stainless Steel Conveyor

Stainless Steel

Variable Speed Conveyors

Available in a stainless steel finish, Eastey’s variable speed conveyors offer the quality that you have come to rely on from Eastey. The EC Series conveyors offer a reliable stand-alone product transport for primary or secondary product marking, and make a convenient add- on infeed or exit feed conveyor to existing case taping or shrink wrapping equipment.

DESIGNED FOR INK JET APPLICATIONS

The EC Series design is perfect for integration with ink jet printing equipment. Each conveyor comes equipped with an extrusion rail to easily add printer and encoder mounting brackets and guide rails. The smooth drive food grade belt provides consistent speed for reliable, scannable barcoding and product transfer. Systems include a lower shelf with holes for cable management and provide storage for supplies such as spare printheads, printer and UV LED control boxes, spare ink, and more.

EASE OF USE

The conveyors utilize an endless food-grade belt with self-tracking V-groove for consistent alignment. The washdown drive motor features immersion proof vents, gaskets between the frame and gearbox, and the conduit box is completely gasketed. The unit also features an AC controller enclosed in a NEMA 4X/IP-65 rated box to protect against damaging environmental conditions such as dirt, condensation, water, and corrosion. Conveyor legs are adjustable from 20” up to 33.5”. The system is designed to keep maintenance to a minimum and provide a fast and efficient method of product transport.

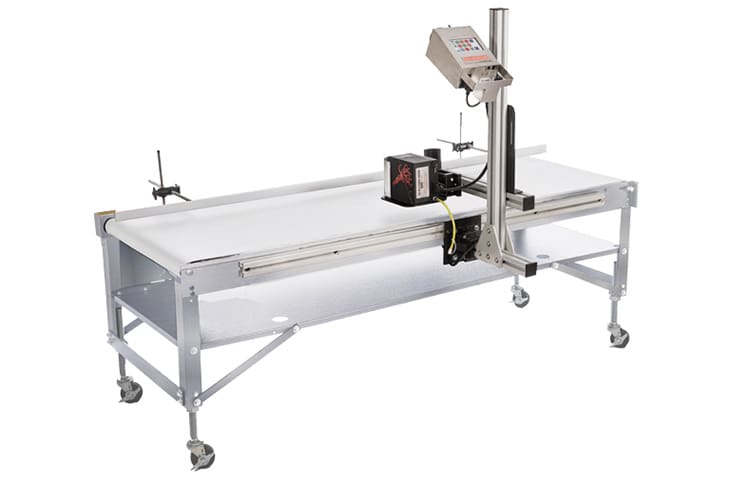

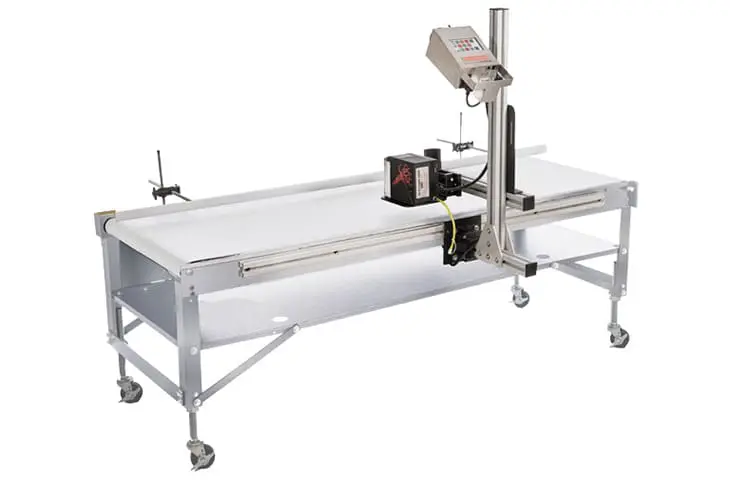

ea-021825-stainlesssteelconveyor-machine_2

INDUSTRIAL STRENGTH OPERATION

Washdown motor, industrial strength food grade drive belt, and stainless steel finish make the Eastey Series Conveyor a workhorse that will stand up to your toughest challenges. Each conveyor is made from grade 304 stainless steel to withstand even the most rugged applications, protect the machine from abusive conditions and ensure years of use.

Videos

Play Video

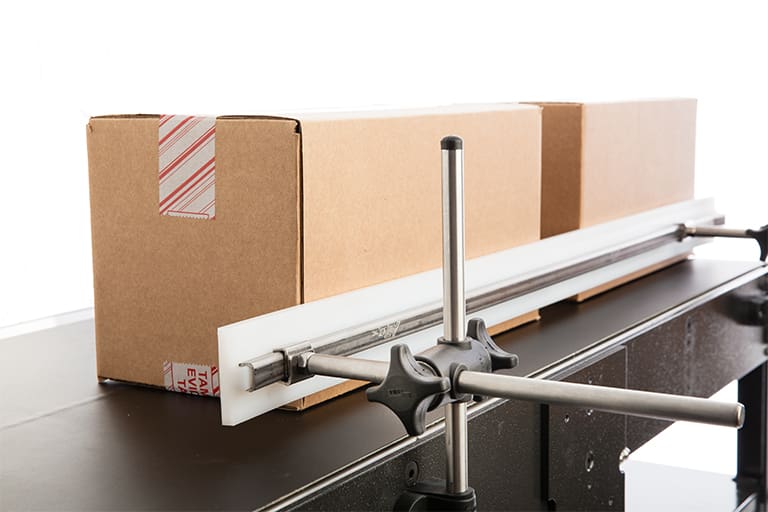

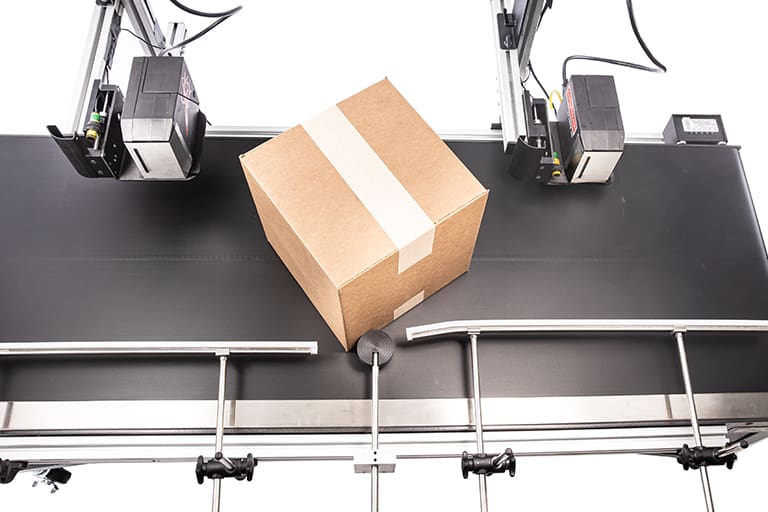

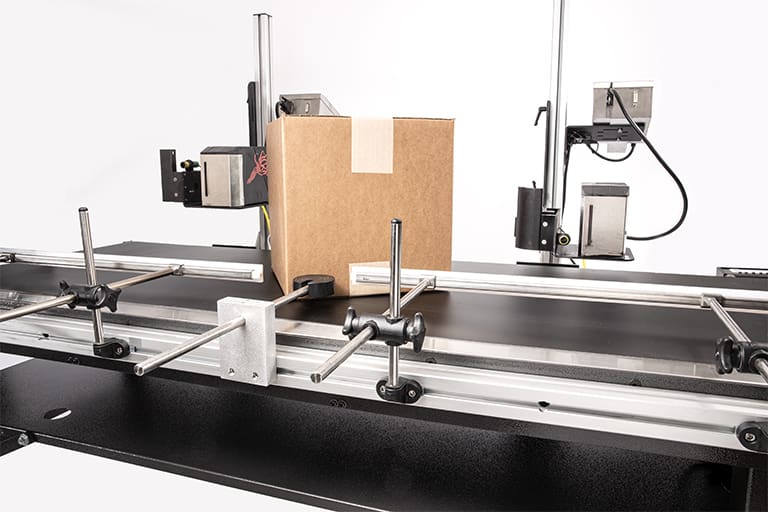

Case Handling Samples

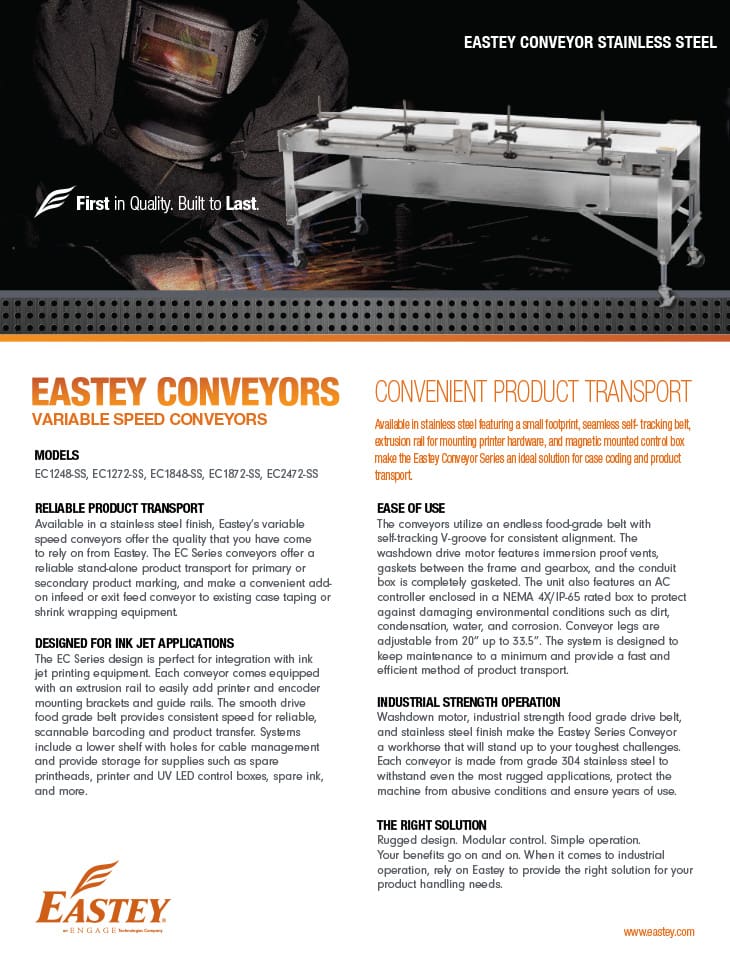

ea-021825-stainlesssteelconveyor-brochure_th

Download the Brochure

Features

Grade 304 stainless steel finish
Variable speed washdown drive motor
AC controller enclosed in a NEMA 4X/ IP-65 rated box
Seamless self-tracking food grade belt
Extrusion rail to easily mount ink jet printing systems and guide rails
Pre-drilled hole for encoder mounting
Shelf for various storage
Small space-saving footprint
Optional guide rails available
Safety cover over pinch points
Smooth, consistent belt speed

Conveyor Specs

Machinery Makeup – Industrial strength grade 304 stainless steel
Variable Speed – Up to 100 fpm
Conveyor Height Adjustment – legs and casters ordered separately:
- With 9” leveling legs: 20” – 33.5” (50.8cm – 85.1cm)
- With 9” legs and casters: 24” – 37.5” (61cm – 95.3cm)
- With 17” leveling legs: 28” – 41.5” (71.1cm – 105.4cm)
- With 17” legs and casters: 32” – 45.5” (81.2cm – 115.6cm)
Electrical Requirements – 110V 5A Single Phase
Max Weight Capacity:
- EC1248, EC1848 & EC2472 90 lbs. maximum weight
- EC1272, EC1872 100 lbs. maximum weight

Models

Model EC1248-SS – 48.9″ (Length) 20.2″ (Width) 12″ (Conveyor Width) 160 lbs. (Weight)
Model EC1272-SS – 72″ (Length) 20.2″ (Width) 12″ (Conveyor Width) 175lbs. (Weight)
Model EC1848-SS – 48.9″ (Length) 26.2″ (Width) 18″ (Conveyor Width) 175 lbs. (Weight)
Model EC1872-SS – 72″ (Length) 26.2″ (Width) 18″ (Conveyor Width) 260 lbs. (Weight)
Model EC2472-SS – 72″ (Length) 32.2″ (Width) 24″ (Conveyor Width) 300 lbs. (Weight)

Optional Accessories

Related Products Case and Product Handling

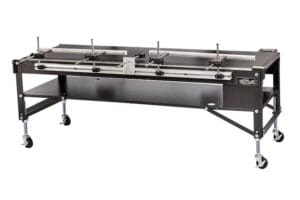

Eastey Conveyor

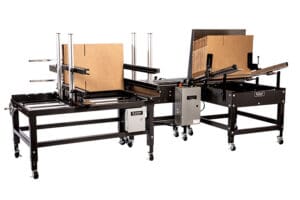

Vertical Case Transport System (VCTS)

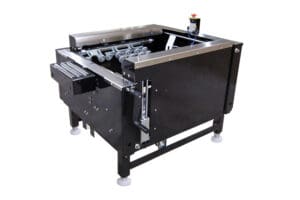

Case Former (EXCF)

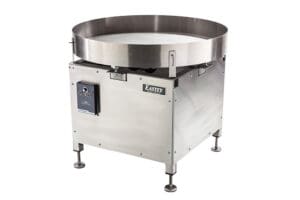

Accumulation Table

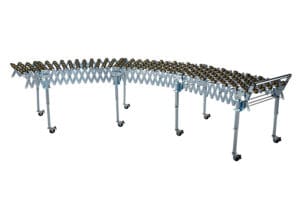

Flex Conveyor
