SB-2HD

Eastey SB-2HD side belt industrial case taper sealer

Side Belt Case Taper

The SB-2HD offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

Wide Standard Case Range

The SB-2HD’s side belts are great for light or heavyweight, narrow or small boxes. The system is ideal for void fill cases where the packaged product does not support the box. SB-2HD is designed to handle boxes that most other case tapers can’t.

Production Meets Versatility

SB-2HD offers fast and easy case changes with adjustable side rails and flexibility for boxes 4.5” long and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. SB-2HD utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4” wide and as low as 2” tall, where most standard case tapers are only able to tape at a depth of 3” or greater. The SB 2HD can be supplied to operate from left to right at no additional cost, and does not require air to run.

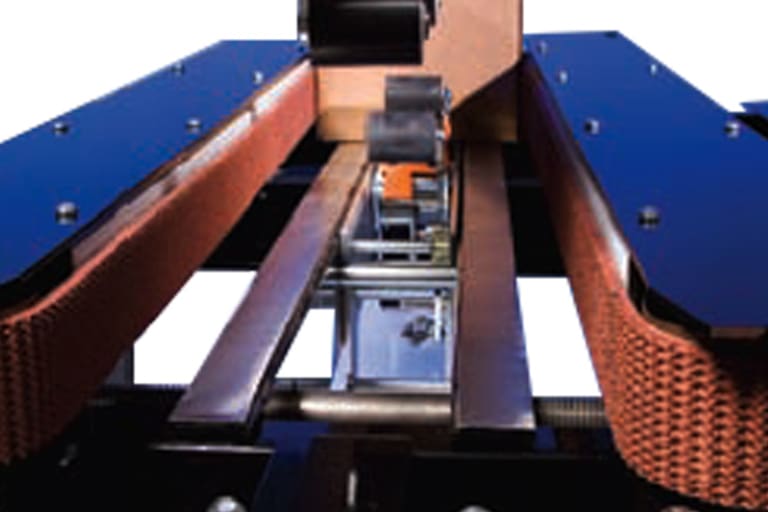

Eastey uniform case taper sealer SB-2HD industrial side belts

Industrial strength drive belts move boxes consistently through the taper.

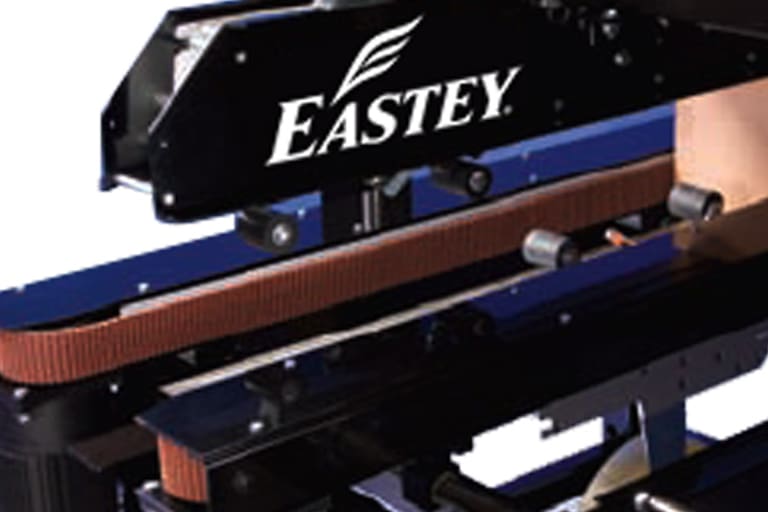

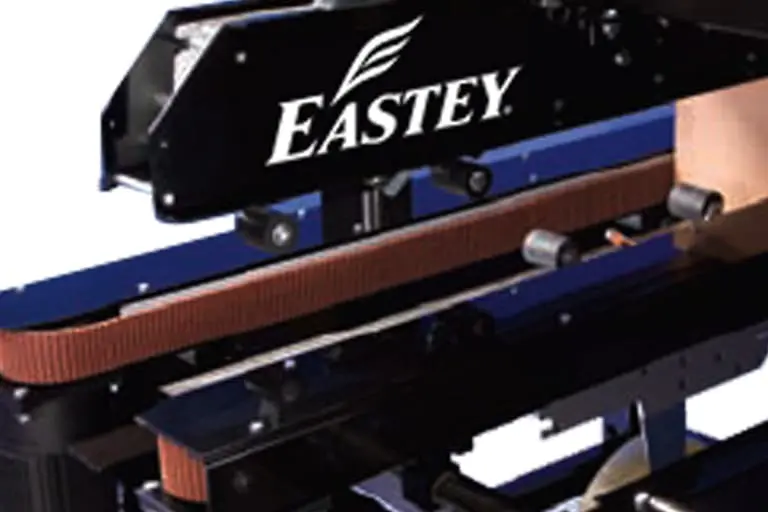

Eastey uniform case taper sealer SB-2HD side rails

Adjustable side rails and tape head offer fast and easy case changes.

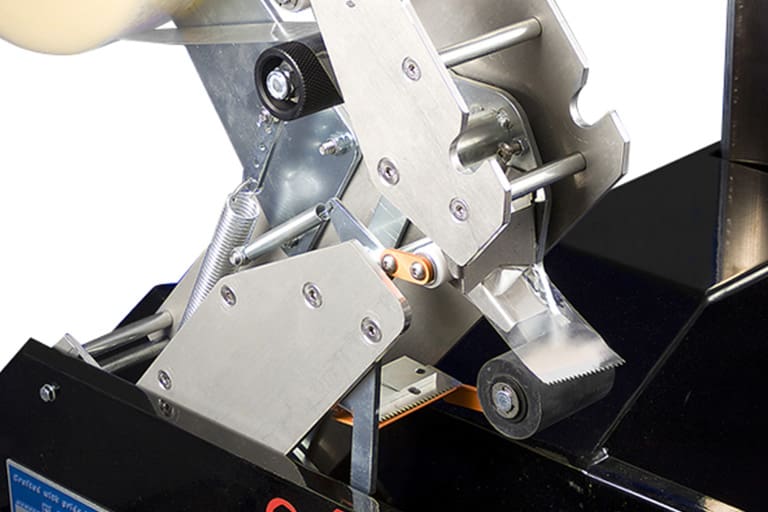

Eastey uniform case taper sealer SB-2HD side belt tapehead

Top and bottom tape heads are interchangeable and tip back for easy threading.

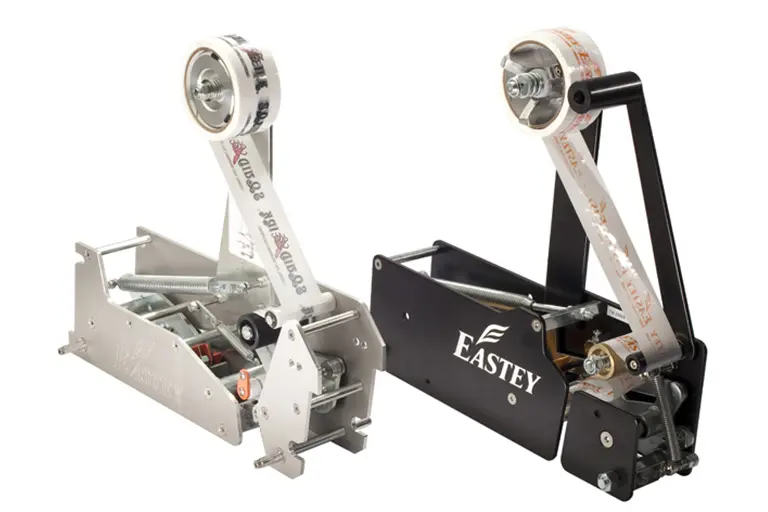

Eastey uniform case taper sealer BB-2 interchangeable tapeheads

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.



  • FEATURES
  • SPECIFICATIONS
  • BOX SPECS
  • OPTIONAL ACCESSORIES
FEATURES OF THE BB-2

  • Plug-in and go operation
  • Powder coated 12 gauge steel
  • Interchangeable top and bottom tape cartridges
  • Industrial strength side belts
  • Adjustable leg extensions
  • Fast and easy box size changes
  • No air required
  • Low maintenance
  • Accommodates wide box size change

TAPING SPECIFICATIONS

  • Sealer Type – Side belt, top and bottom case sealer
  • Machinery Makeup – Industrial strength 12 gauge steel, powder coated for durability
  • Belt Speed – 72 feet/per minute
  • Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
  • Conveyor Height Adjustment – 22.5” to 30.5”, add 3” for casters if needed
  • Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape
  • Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
  • Air Requirements – None
  • Electrical Requirements – 110 VAC, 60Hz, 5.0A

BOX SPECIFICATIONS

  • Minimum Box Size – (Length) 4.5″ (Width) 4″ (Depth) 2″
  • Maximum Box Size – (Length) infinite (Width) 20″ (Depth) 25.5″

OPTIONAL ACCESSORIES

  • 3” Tape Head – Accepts 3” wide tape rolls
  • Casters – Rugged wheels for transportation within plant
  • Top Squeezers – Allows for operation with variable speed conveyors
  • Stainless Finish – Complete stainless finish to meet specific application requirements4
