Automatic L-Sealers VSA2530 (Value Series)

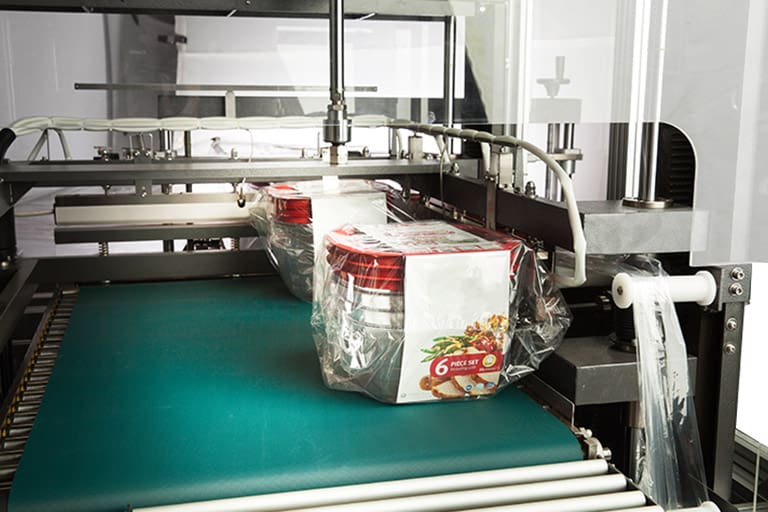

Eastey L-Sealer Automatic Value Series 2530 shrink packaging

Automatic L-Sealers Value Series VSA2530

Proven reliable over and over again, these intermediate level EASTEY Automatic L-Sealers provide you with all the quality features found in much higher priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.

Proven Reliability, Efficient Design

Designed specifically for entry-level or intermediate applications that require simple operation, small footprint, or a limited budget, Eastey’s Value-Series Automatic L-Sealers will handle the day to day abuse required for automatic sealing.

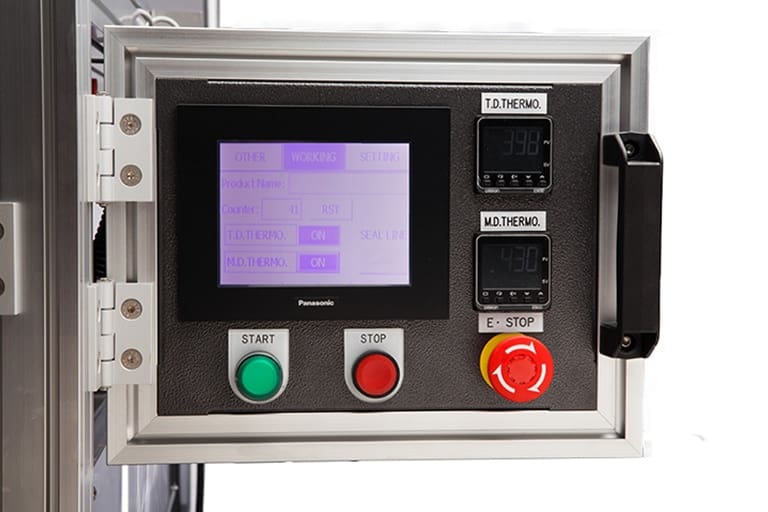

Eastey L-Sealer Automatic Value Series shrink packaging HMI interface

User interface features simple menus for easy operation and adjustments required for a variety of applications.

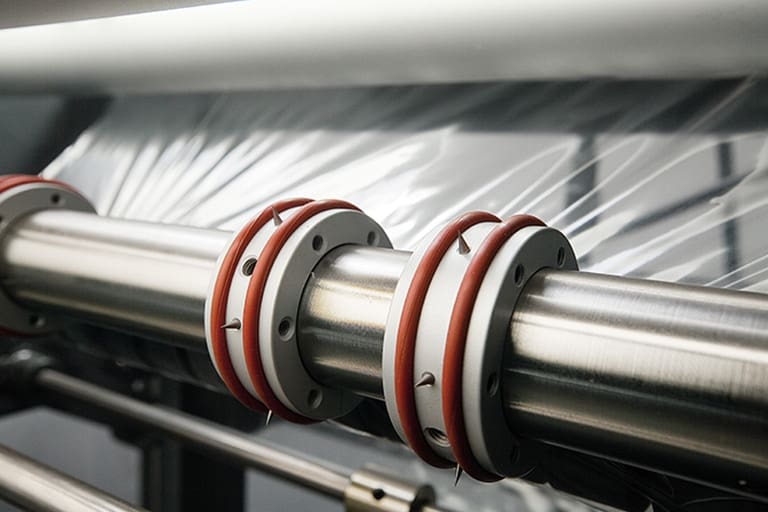

Eastey L-Sealer Automatic Value Series shrink packaging pin perf

Adjustable pin perforator provides air evacuation in the film for clean and tight film shrinkage.



Eastey L-Sealer Automatic 2530 Value Series shrink packaging exit table

Roller exit table provides a smooth transition from the seal area to the shrink tunnel.

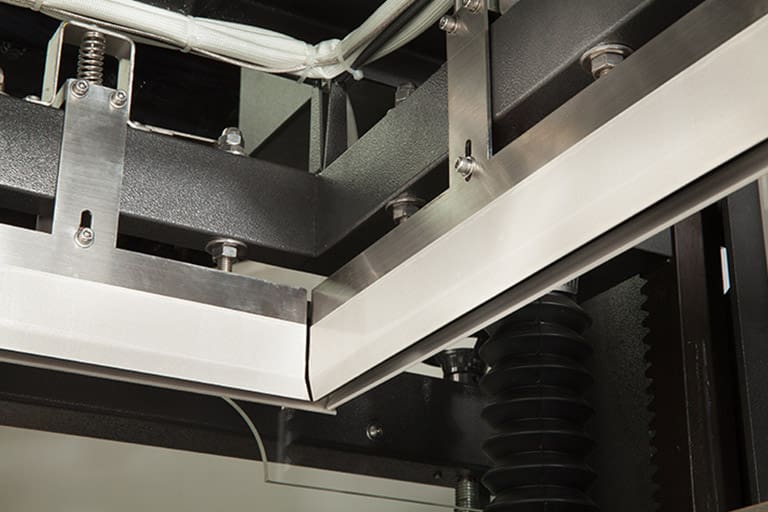

Eastey L-Sealer Automatic Value Series 2530 shrink packaging seal bar

Hot knife seal bar for consistent and clean seal.



  • FEATURES
  • MODEL SPECS
FEATURES OF THE AUTOMATIC L-SEALER VALUE SERIES VSA2530

  • Designed to seal most polyolefin, polyethylene, and PVC shrink films
  • All-welded main frame from 12 gauge steel
  • Normal speed infeed and outfeed conveyors
  • High speed with product indexing
  • Motorized seal height adjustment for various product sizes
  • Seal head equipped with pneumatic air cylinder for automatic sealing
  • Hot knife seal bar for consistent and clean seal
  • Consistent pressure across seal bar
  • Automatic cycle timing with adjustable dwell time
  • HMI controller with simple menus for easy operation
  • Film tracking wheels keep film in place
  • Multiple pin perforator provides precise air evacuation
  • Heavy duty casters for transportation within plant
  • Leveling legs provide sturdy base once in place
  • 25”W x 30”L seal area
  • Scrap unwind automatically wraps up the scrap film left from the sealer
  • Easy to use design requires minimal training and maintenance
  • Maximum film width up to 25”
  • Maximum film roll OD up to 12”
  • 80 psi
  • Available in 220v

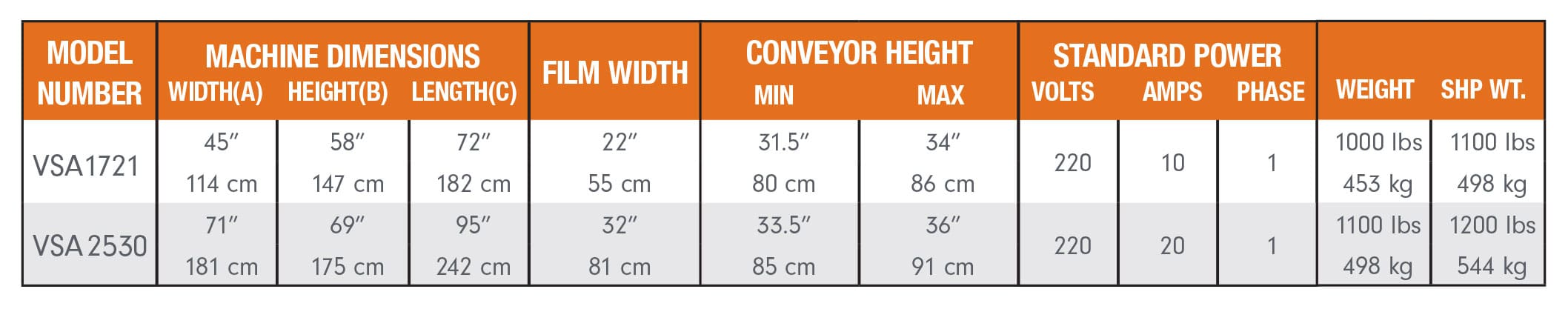

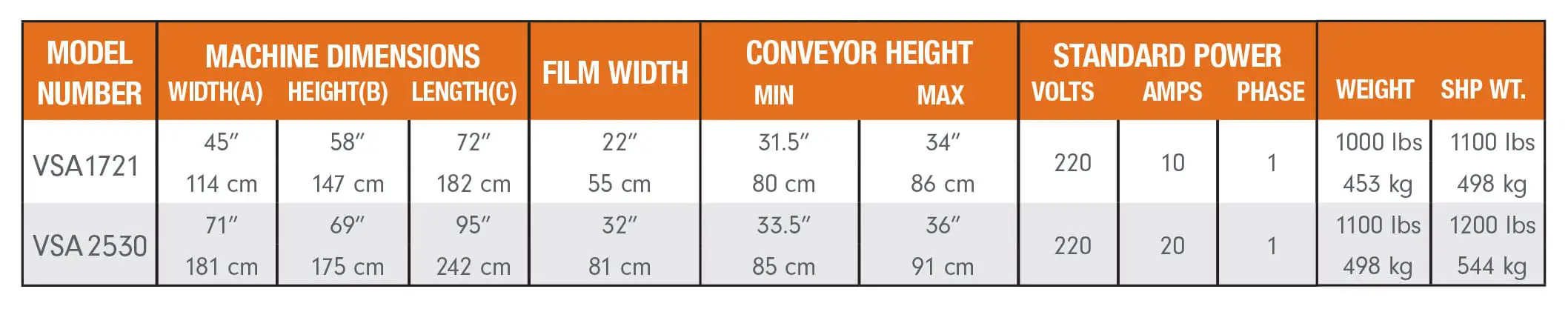

MODEL SPECIFICATIONS

eastey-l-sealer-automatic-value-series-specs Click to Enlarge
